Mizumoto Machine Mfg. Co.

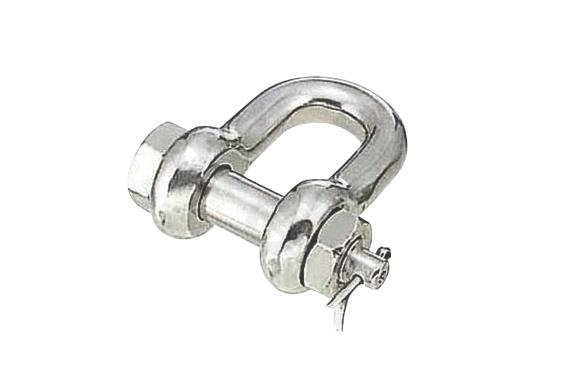

Mizumoto SB Series JIS Type Shackle
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: SB Series
Features
- The thickness of the pin is thicker than the thickness of the frame.
- Since it is a wari pin stop, there is no risk of the pin loosening due to vibration.
- It is a JIS type. As a connecting bracket such as a chain, wire, rope, etc., and as a joint for terminal fittings.
- In a place where the pin may loosen with a normal shackle, especially due to a lot of vibration. Hex nut wari pin stop
Specifications
| Product Number | D | L | B | d | t | Thread Size | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| SB-6 | 8 | 24 | 11 | 17 | 6 | M-8 | 47 | 200 | 1.96 |
| SB-8 | 10 | 32 | 14 | 21 | 8 | M-10 | 94 | 350 | 3.43 |
| SB-10 | 12 | 40 | 17 | 25 | 10 | M-12 | 173 | 600 | 5.88 |
| SB-12 | 15 | 48 | 20 | 32 | 12 | M-14 | 290 | 900 | 8.82 |
| SB-14 | 17 | 56 | 24 | 36 | 14 | M-16 | 440 | 1200 | 11.76 |
| SB-16 | 19 | 64 | 26 | 40 | 16 | M-18 | 640 | 1500 | 14.70 |
| SB-18 | 21 | 72 | 29 | 45 | 18 | M-20 | 940 | 2000 | 19.60 |
| SB-20 | 24 | 80 | 31 | 50 | 20 | M-24 | 1270 | 2500 | 24.50 |
| SB-22 | 26 | 88 | 34 | 55 | 22 | M-24 | 1540 | 3000 | 29.40 |
| SB-24 | 30 | 96 | 39 | 62 | 24 | M-30 | 2310 | 3600 | 35.28 |

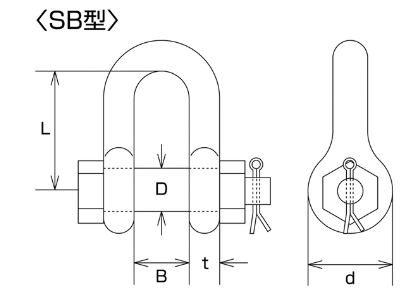

Dimensions (mm)
