Mizumoto Machine Mfg. Co.
Mizumoto ALBE Series Aluminum Snap Hook BE Type
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: ALBE Series
Features
- It is a lightweight spring hook.
- The shape of the opening is a hook type, so it is designed to prevent it from sticking to your fingers.
- As a connecting bracket such as chain, wire, rope, etc., and as a joint of terminal fittings.

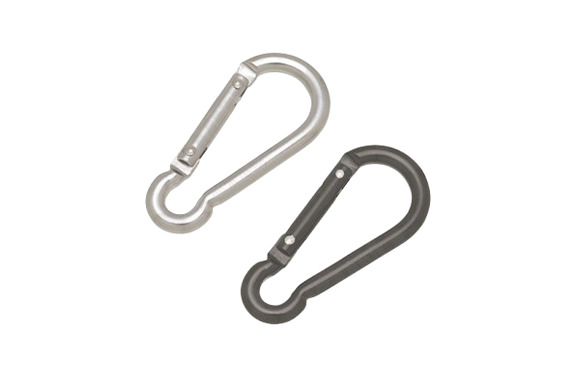

- 2 colors: S = silver, BK = black
Specifications
| Part No. | D | L | W | S | d1 | d2 | Weight (g) | Reference Working Load | |
| (kgf) | (kN) | ||||||||
| NEW ALBE-5 | 4.5 | 50 | 25 | 7 | 5 | 7 | 4.5 | 10 | 0.10 |
| NEW ALBE-6 | 5.5 | 60 | 28 | 7 | 5.5 | 8 | 8 | 20 | 0.20 |
| NEW ALBE-8 | 7.5 | 82 | 38 | 10 | 8 | 11 | 19 | 30 | 0.29 |
*Aluminum light alloy (with anodized aluminum)
*For each color designation, please put silver = S black = BK at the end of the part number.
*The color may differ from the actual product.
*The color may fade depending on the environment.

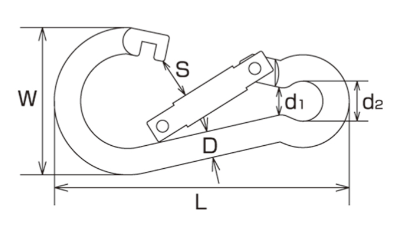

Dimensions (mm)
