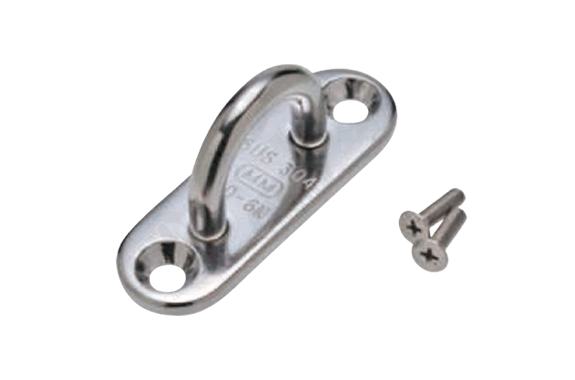

Mizumoto PD-N Series Pad Eye (with Machine Screws)
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: PD-N Series
Features
- It can be installed on narrow surfaces.
- It is installed on walls, floors, columns, etc., and is used as terminal fittings such as chains, wires, and ropes.
- Comes with 2 stainless steel countersunk machine screws.
Specifications
| Model | D | A | B1 | B2 | H | h | W | d | T | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| NEW PD-3N (B-3064) | 3 | 9 | 27 | 22 | 12 | 7 | 9.5 | 2.5 | 2 | 4 |
| NEW PD-4N (B-3065) | 4 | 12 | 36 | 28.5 | 17 | 10 | 12.5 | 3.5 | 3 | 11 |
| NEW PD-5N (B-3066) | 5 | 15 | 45 | 35 | 20.5 | 12.5 | 15 | 4.5 | 3 | 18 |
| NEW PD-6N (B-3067) | 6 | 20 | 60 | 46 | 27 | 17 | 19 | 5.5 | 4 | 41 |
| NEW PD-8N (B-3068) | 8 | 26 | 80 | 60 | 33 | 21 | 23 | 6.5 | 4 | 80 |
| NEW PD-9N (B-3069) | 9 | 32 | 100 | 73 | 39 | 26 | 25 | 6.5 | 4 | 123 |

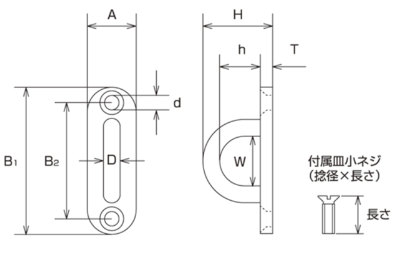

Dimensions (mm)
