Mizumoto Machine Mfg. Co.

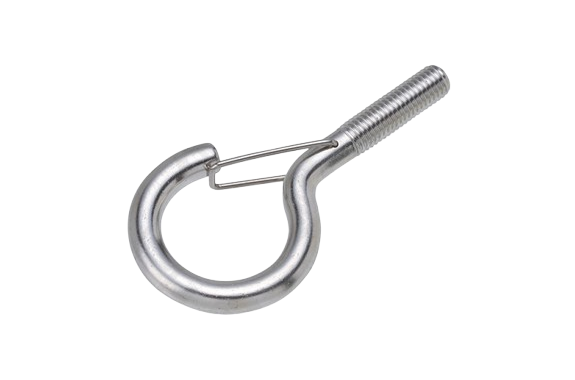

Mizumoto GH Series Hang Hook
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: GH Series
Features
- Since it is equipped with a slip stop, it is difficult for hanging items to come off carelessly.
- It is installed on walls, floors, pillars, etc., and is used as a terminal hardware for chains, wires, and ropes.
Specifications
| Product Number | D | L | L1 | B | W | S | Thread Size | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| GH-12 | 10.5 | 118 | 78 | 40 | 38 | 19 | M-12 | 135 | 150 | 1.47 |
| GH-16 | 14.5 | 156 | 106 | 50 | 52 | 26 | M-16 | 335 | 250 | 2.45 |

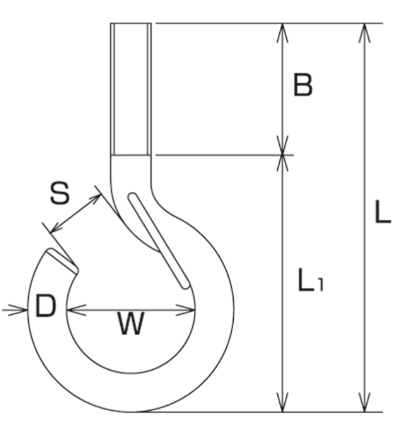

Dimensions (mm)
