Mizumoto Machine Mfg. Co.

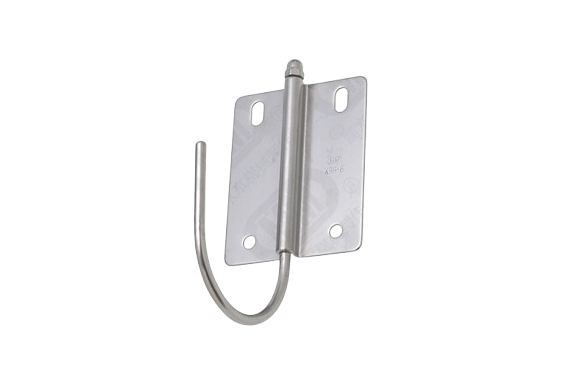

Mizumoto KBH Series Neck Hook
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: KBH Series
Features
- The hook rotates 180°.
- When not in use, it will not get in the way if you defeat it.
- The fastening hole at the top of the plate is a long hole, so you can fine-tune the mounting position.
- For cable storage of field equipment.
Specifications
| Product Number | D1 | L1 | L2 | W1 | W2 | d1 | d2 | d3 | D2 | L3 | S | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| KBH-6 | 2 | 100 | 75 | 80 | 50 | 14 | 7 | 7 | 6 | 80 | 70 | 211 | 15 | 0.15 |
| KBH-8 | 2 | 100 | 75 | 80 | 50 | 18 | 9 | 9 | 8 | 80 | 90 | 273 | 25 | 0.25 |
| KBH-10 | 2 | 120 | 85 | 100 | 60 | 22 | 11 | 11 | 10 | 80 | 110 | 444 | 35 | 0.34 |

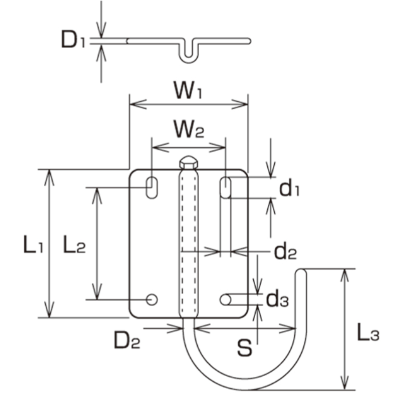

Dimensions (mm)
