Mizumoto Machine Mfg. Co.

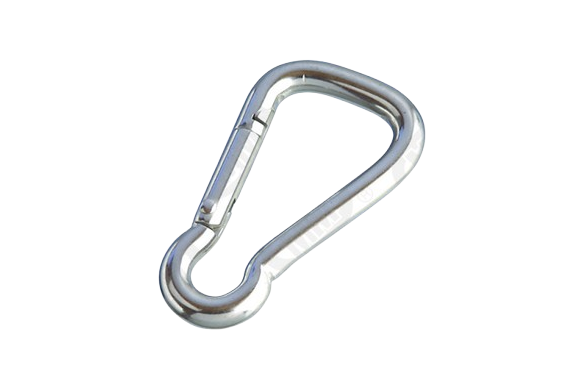

Mizumoto BD Series Snap Hook
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: BD Series
Features
- This is a spring hook.
- When a load is applied, the load is applied to the long side, so it has a structure that does not put a burden on the hook.
- It can be used as a connecting bracket such as a chain, wire, rope, etc., and as a joint for terminal metal fittings.
Specifications
| Product Number | D | L | W | S | d1 | d2 | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|
| BD-5 | 5 | 50 | 30 | 9 | 6 | 8 | 17 | 60 | 0.59 |
| BD-6 | 6 | 60 | 34 | 9 | 7 | 9 | 29 | 80 | 0.78 |
| BD-8 | 8 | 80 | 45 | 12 | 8.5 | 12 | 69 | 120 | 1.18 |
| BD-10 | 10 | 100 | 55 | 15 | 11.5 | 16 | 135 | 150 | 1.47 |

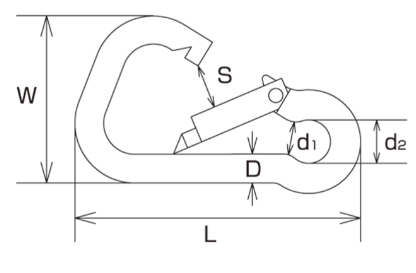

Dimensions (mm)
