Mizumoto Machine Mfg. Co.

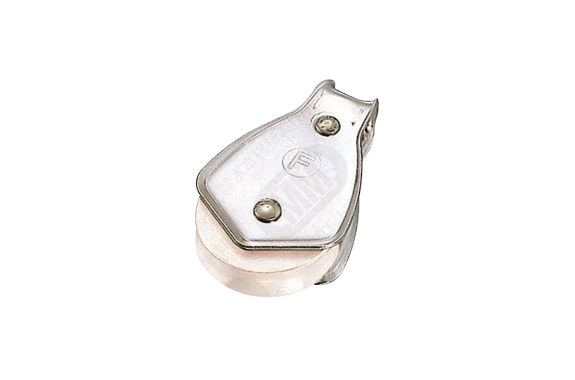

Mizumoto FS/ FD Series F-Block
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: FS/ FD Series
Features
- It is a small and lightweight pulley. It is used for lifting and tensioning work such as loads through ropes.
Specifications
| Model | Wheel Diameter | Sheave Material | Frame Material | Width | Groove Width | B | C | L | Applicable Rope Diameter | Weight (g) | Reference Working Load (kgf) | Reference Working Load (kN) |
| FS-30 | 30 | Stainless Steel (SUS-304) | Stainless Steel | 8.5 | 5 | 13 | 7.5 | 57 | ~φ5 | 60 | 30 | 0.29 |
| FS-35 | 35 | Stainless Steel (SUS-304) | Stainless Steel | 8.5 | 5 | 13 | 7.5 | 60 | ~φ6 | 80 | 30 | 0.29 |
| FD-30 | 30 | Stainless Steel (SUS-304) | Nylon | 8.5 | 5 | 13 | 7.5 | 57 | ~φ5 | 30 | 30 | 0.29 |
| FD-35 | 35 | Stainless Steel (SUS-304) | Nylon | 9 | 5 | 13 | 7.5 | 60 | ~φ6 | 32 | 30 | 0.29 |

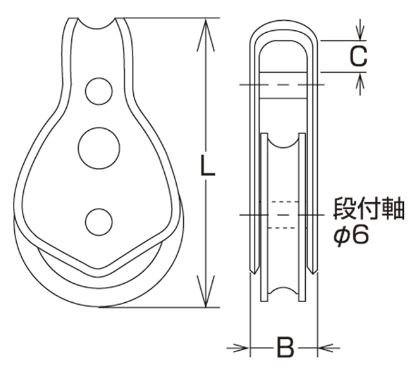

Dimensions (mm)
