Mizumoto Machine Mfg. Co.

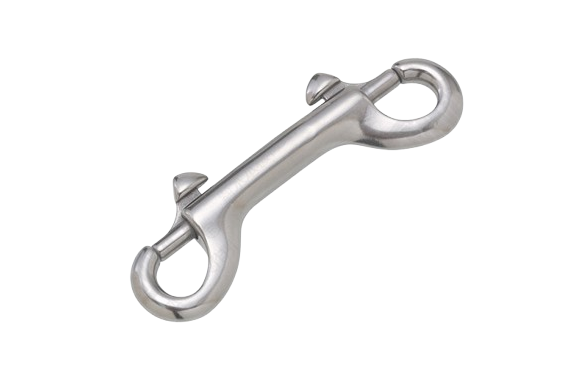

Mizumoto DHN Series Double Head Nascan
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: DHN Series
Features
- It opens with one touch, so you can easily join it.
- It is a connecting metal fitting for chains, wires, and ropes.
Specifications
| Product No. | L | W | S | t | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|
| DHN-1 | 89.5 | 21 | 8 | 5.5 | 48 | 25 | 0.25 |
| DHN-2 | 103 | 25 | 10 | 6 | 63 | 30 | 0.29 |
| DHN-3 | 121 | 26 | 11 | 6.5 | 75 | 35 | 0.34 |

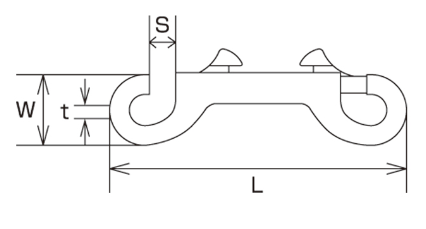

Dimensions (mm)
