Mizumoto Machine Mfg. Co.

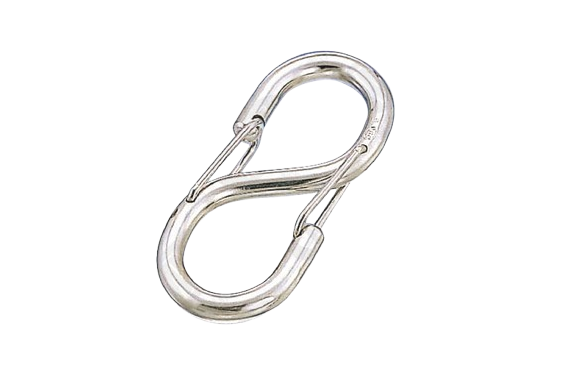

Mizumoto SF Series S Kung Phuc
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: SF Series
Features
- It comes with a hook, so it is difficult for the hook to come off.
- It is used for connecting chains, wires, ropes, etc., and for joints of terminal fittings.
Specifications
| Product No. | D | L1 | L2 | W | S | R | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|
| SF-3 | 3 | 37 | 31 | 16 | 5.5 | 3.5 | 4 | 8 | 0.08 |
| SF-4 | 4 | 44 | 36 | 22 | 7 | 5 | 10 | 15 | 0.15 |
| SF-5 | 5 | 62 | 32 | 26 | 8.5 | 6 | 21 | 20 | 0.20 |
| SF-6 | 6 | 75 | 63 | 42 | 10.5 | 7 | 55 | 30 | 0.29 |
| SF-8 | 8 | 93 | 83 | 42 | 10.5 | 8 | 85 | 50 | 0.49 |
| SF-10 | 10 | 125 | 105 | 53 | 17.5 | 13.5 | 170 | 120 | 1.18 |
| SF-12 | 12 | 150 | 126 | 64 | 20 | 16 | 300 | 150 | 1.47 |

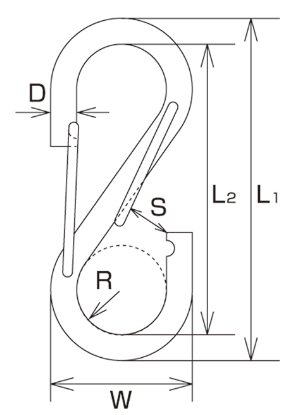

Dimensions (mm)
