Mizumoto Machine Mfg. Co.

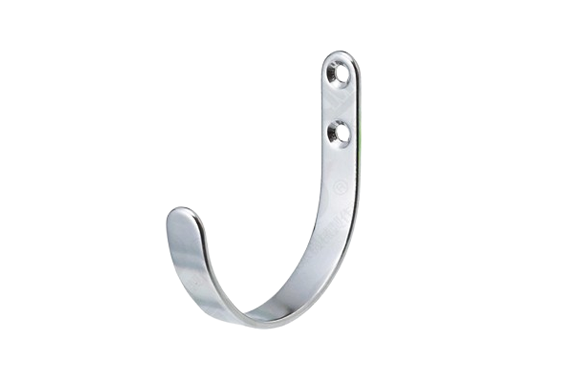

Mizumoto YFE Series Seat Hook Type E
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: YFE Series
Features
- As a hanger.
Specifications
| Item Number | L (Length) | W (Width) | B (Breadth) | H (Height) | d | T | Weight (kg) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|
| YFE-40 | 52 | 12 | 15 | 40 | 4 | 2.5 | 19 | 3 | 0.03 |
| YFE-60 | 62 | 12 | 15 | 60 | 4 | 2.5 | 25 | 3 | 0.03 |
| YFE-80 | 80 | 15 | 17.5 | 80 | 4 | 3 | 54 | 3 | 0.03 |
| YFE-100 | 90 | 15 | 17.5 | 100 | 4 | 3 | 63 | 3 | 0.03 |
*Type B (bagged) comes with stainless steel plate wood twister

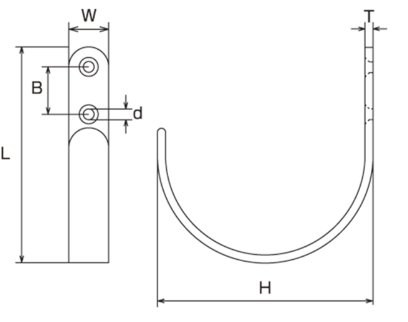

Dimensions (mm)
