Mizumoto Machine Mfg. Co.
Mizumoto HT Series Hanger Unit TR Type
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: HT Series
Features
- The ring part falls over, so it is less likely to get in the way when not in use.
- It is installed on walls, floors, pillars, etc., and is used as a terminal hardware for chains, wires, and ropes.
- Stainless steel plate with wooden twister.
Specifications
| Model | D1 | L | L1 | W | W1 | H | d | D2 | A | Weight (g) | Reference Usage Weight (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HT-1(B-853) | 1.5 | 28 | 17 | 28 | 14 | 7.5 | 3.2 | 5 | 35 | 29 | 10 (kN) / 0.1 |
| HT-2(B-854) | 1.5 | 33 | 20 | 33 | 16.5 | 7.5 | 3.5 | 5 | 40 | 35 | 10 (kN) / 0.1 |
| HT-3(B-855) | 1.5 | 38 | 22.5 | 38 | 19 | 8.5 | 3.5 | 6 | 45 | 53 | 10 (kN) / 0.1 |
| HT-4(B-856) | 2 | 43 | 26 | 43 | 21.5 | 11 | 4.2 | 8 | 45 | 96 | 15 (kN) / 0.15 |
*Stainless steel plate with wooden twister.

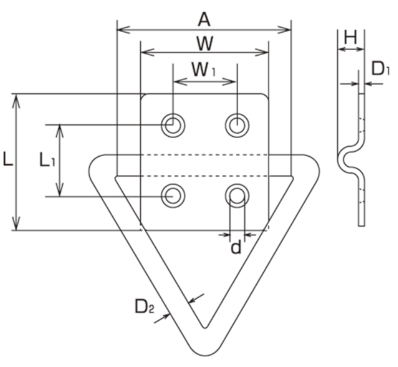

Dimensions (mm)
