Mizumoto Machine Mfg. Co.

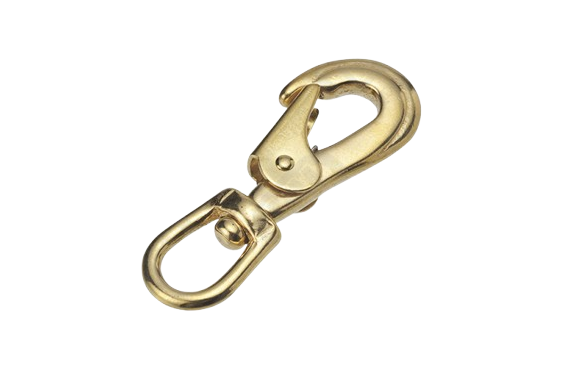

Mizumoto BRF Series Brass Swivel Snap
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: BRF Series
Features
- The eye part rotates, so it doesn’t get tangled when connected.
- It opens with one touch, so you can easily join it.
- As a connecting bracket such as chain, wire, rope, etc., and as a joint of terminal fittings.
Specifications
Material: Brass
| Part No. | D | L | W | S | R | H | d | t | Weight (g) | Reference Working Load | |
| (kgf) | (kN) | ||||||||||
| BRF-1 | 3.5 | 60 | 22 | 7 | 3 | 12.5 | 10 | 4.5 | 21 | 15 | 0.15 |
| BRF-2 | 4 | 70 | 26 | 7 | 2.5 | 14 | 12 | 5.5 | 34 | 20 | 0.2 |
Dimensions (mm)
