Mizumoto Machine Mfg. Co.

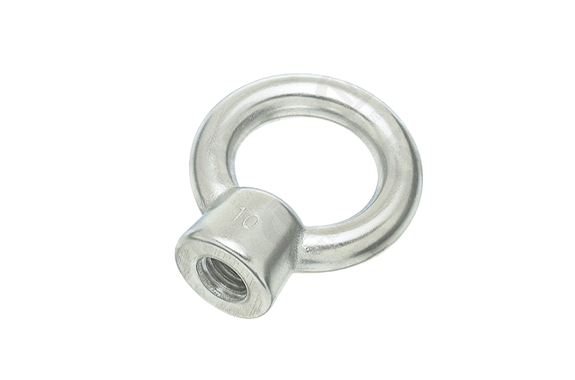

Mizumoto IN Series Eye Nut
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: IN Series
Features
- The head of the nut is ring-shaped, so it can be used through ropes, chains, wires, etc.
- For general cargo handling such as lifting machinery and equipment.
- It is a millimeter screw.
Specifications
| Product Number | D | L | H | B | A | Thread Size | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| IN-2M | 2 | 8 | 10 | 5 | 8 | M-2 | 2 | 10 | 0.10 |
| IN-3M | 3 | 9 | 12 | 6 | 9 | M-3 | 4 | 15 | 0.15 |
| IN-4M | 4 | 10 | 14 | 7 | 10 | M-4 | 6 | 20 | 0.20 |
| IN-5M | 5 | 13 | 18 | 8 | 11 | M-5 | 11 | 30 | 0.29 |
| IN-6M | 5.5 | 16 | 20 | 10 | 13 | M-6 | 17 | 50 | 0.49 |
| IN-8M | 7 | 19 | 26 | 14 | 16 | M-8 | 34 | 80 | 0.78 |
| IN-10M | 8 | 25 | 32 | 17 | 20 | M-10 | 60 | 150 | 1.47 |
| IN-12M | 10 | 30 | 39 | 22 | 24 | M-12 | 116 | 220 | 2.16 |
| IN-16M | 13 | 34 | 46 | 26 | 31 | M-16 | 240 | 450 | 4.41 |
| Product Number | D | L | H | B | A | Thread Size | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| IN-6W | 5.5 | 16 | 20 | 11 | 13 | W-1/4 | 17 | 50 | 0.49 |
| IN-8W | 7 | 19 | 26 | 14 | 16 | W-5/16 | 34 | 80 | 0.78 |
| IN-10W | 8 | 25 | 32 | 17 | 20 | W-3/8 | 60 | 150 | 1.47 |
| IN-12W | 10 | 30 | 39 | 22 | 24 | W-1/2 | 116 | 220 | 2.16 |
| IN-16W | 13 | 34 | 46 | 26 | 31 | W-5/8 | 240 | 450 | 4.41 |

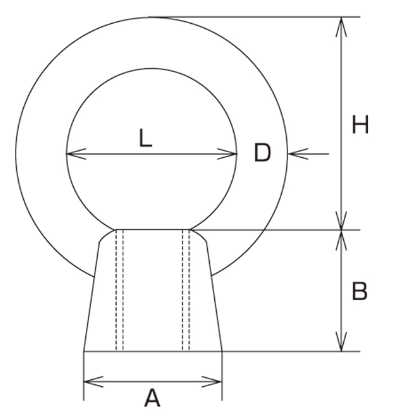

Dimensions (mm)
