Mizumoto Machine Mfg. Co.

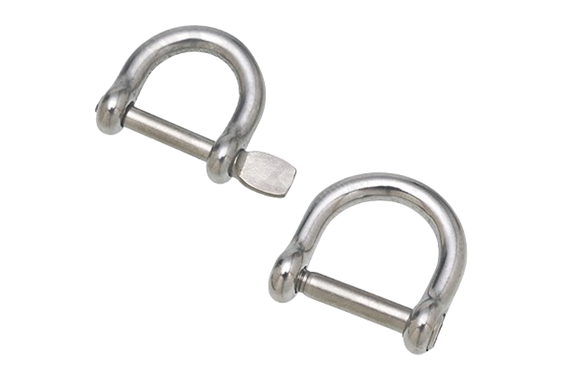

Mizumoto SPW Series Micro Wide Shackle
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: SPW Series
Features
- This is an extremely small shackle.
- There are two types: screw and threaded.
- It is twice as wide as a conventional micro shackle, so it is more versatile.
- It can be used as a connecting metal fitting for chains, wires, ropes, etc., and as a joint for terminal metal fittings.
Specifications
| Product Number | D | L | B | d | Thread Size | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| SPW-2 | 2 | 8 | 8 | 4 | M-2 | 1.5 | 10 | 0.10 |
| SPW-3 | 3 | 12 | 12 | 6 | M-3 | 4 | 25 | 0.25 |
| Product Number | D | L | B | d | Thread Size | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
| CSW-2 | 2 | 8 | 8 | 4 | M-2 | 1 | 10 | 0.10 |
| CSW-3 | 3 | 12 | 12 | 6 | M-3 | 3 | 25 | 0.25 |

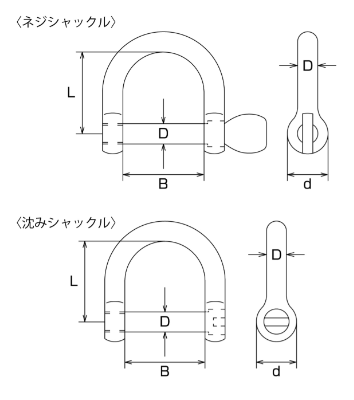

Dimensions (mm)
