Mizumoto Machine Mfg. Co.

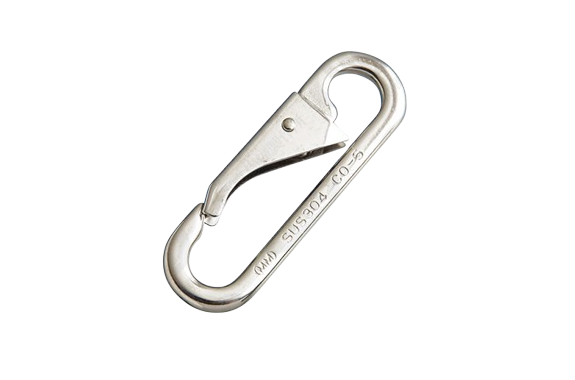

Mizumoto CO Series Snap Hook
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: CO Series
Features
- It is a spring hook.
- The opening part is returned by the force of the spring.
- As a connecting bracket such as chains, wires, ropes, etc.
Specifications
| Item No. | D | L | W | d | S1 | S2 | t | Weight (g) | Max Load (kgf) | Max Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|
| CO-5 | 6 | 80 | 25 | 14 | 10 | 6 | 5 | 40 | 30 | 0.29 |
| CO-6 | 8 | 95 | 32 | 16 | 14 | 7 | 7 | 78 | 45 | 0.44 |
| CO-8 | 9 | 110 | 39 | 21 | 17 | 9 | 8 | 117 | 65 | 0.64 |

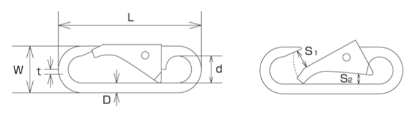

Dimensions (mm)
