Mizumoto Machine Mfg. Co.

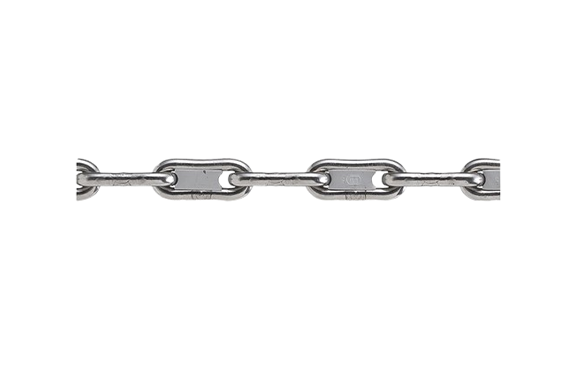

Mizumoto K Series Blockchain (PAT.)
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: K Series
Features
- It is used for swings, chain nets, jungle gyms, suspension bridge chains, etc. to prevent finger pinching.
Specifications
| Part No. | Wire Dia. d (mm) | Inner Length P (mm) | Inner Width W (mm) | Weight per meter (kg/m) (Calculated) | Working Load (Reference) | |
| (kgf) | (kN) | |||||
| 6-K | 6 | 32.2 | 6.5 | 0.71 | 350 | 3.43 |
| 7-K | 7 | 38.5 | 8.5 | 0.93 | 450 | 4.41 |
| 8-K | 8 | 40 | 8.5 | 1.23 | 600 | 5.88 |
Material: Chain stainless steel SUS304
block aluminum light alloy (with anodized aluminum)

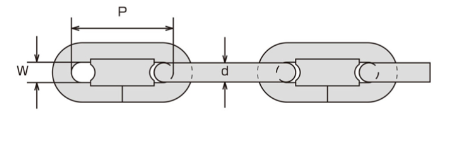

Dimensions (mm)
