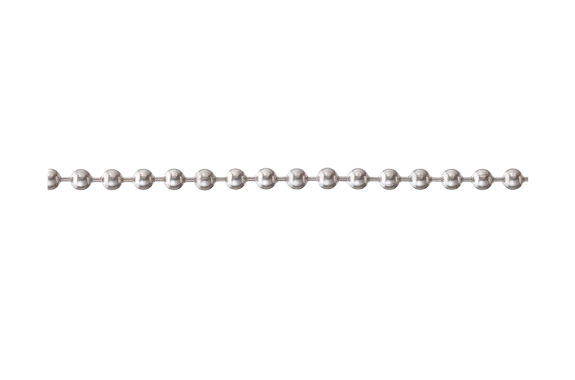

Mizumoto R Series Ball Chain
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: R Series
Features
- It has excellent corrosion and oxidation resistance, so it can be used in a very wide range.
- The chain itself has a twisting function and does not twist.
Specifications
| Part No. | Ball Dia. d (mm) | A (mm) | Weight per meter (g/m) (Calculated) | Reference Working Load | |
| (kgf) | (kN) | ||||
| 2.3-R | 2.3 | 3.3 | 9 | 4 | 0.04 |
| 3.2-R | 3.2 | 4.4 | 16 | 6 | 0.06 |
| 4.5-R | 4.5 | 6.4 | 31 | 15 | 0.15 |
| Reel | |
| Part No. | Length |
| I-132 | 100 m |
| I-133 | 50 m |
| I-134 | 40 m |

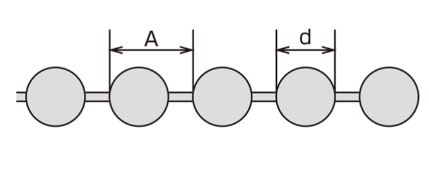

Dimensions (mm)
