Mizumoto Machine Mfg. Co.

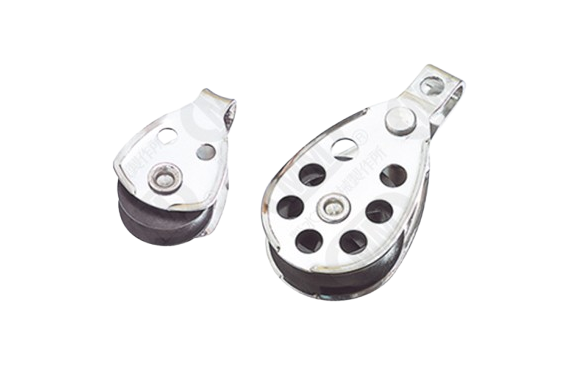

Mizumoto PB Series Pulley Blocks
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: PB Series
Features
- It is a small and lightweight pulley. It is used for lifting and pulling loads through ropes.
Specifications
| Part No. | Wheel Diameter | Number of Wheels | Track Width | L | W | d | Applicable Rope Diameter | Weight (g) | Reference Load | |
|---|---|---|---|---|---|---|---|---|---|---|
| (kgf) | (kN) | |||||||||
| PB-25 | 25 | 1 | 7.5 | 45.5 | 28.5 | 10 | φ5～φ7 | 21 | 30 | 0.29 |
| PB-35 | 35 | 1 | 9.5 | 72.5 | 37 | 6 | φ8～φ10 | 46 | 50 | 0.49 |

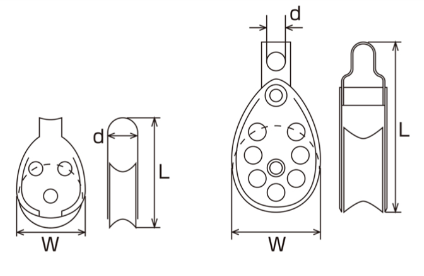

Dimensions (mm)
