Mizumoto Machine Mfg. Co.

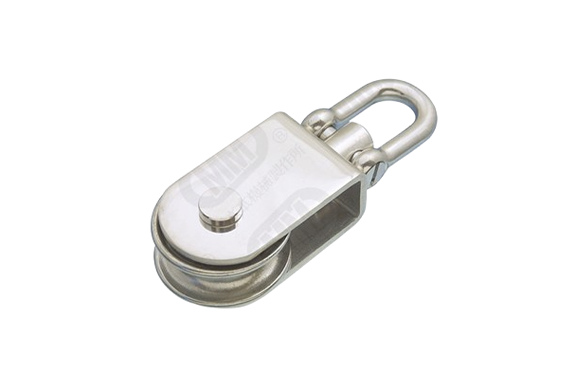

Mizumoto HK Series Sanma Block (Sinking Shackle Type)
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: HK Series
Features
- You can remove the sinking shackle with a flat rubber.
- Pass the rope through it to lift and pull luggage.
Specifications
Recessed Shackle Type
| Model | Wheel Diameter | Number of Wheels | Wheel Groove Width | L | W | H | D | C | L2 | Applicable Rope Diameter | Weight (g) | Reference Working Load (kgf) | Reference Working Load (kN) |
| HK-50 | 50 | 1 | 14 | 132 | 45 | 30 | 9 | 18 | 27 | ~φ12 | 500 | 300 | 2.94 |
| HK-75 | 75 | 1 | 15 | 196 | 65 | 33.5 | 13 | 26 | 38 | ~φ14 | 1100 | 500 | 4.90 |

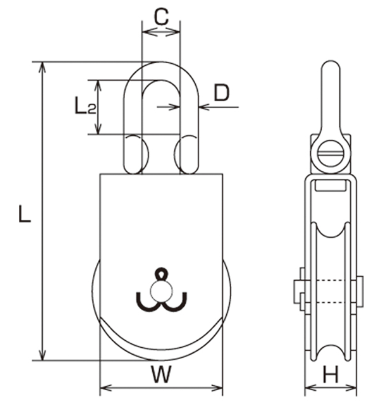

Dimensions (mm)
