Mizumoto Machine Mfg. Co.

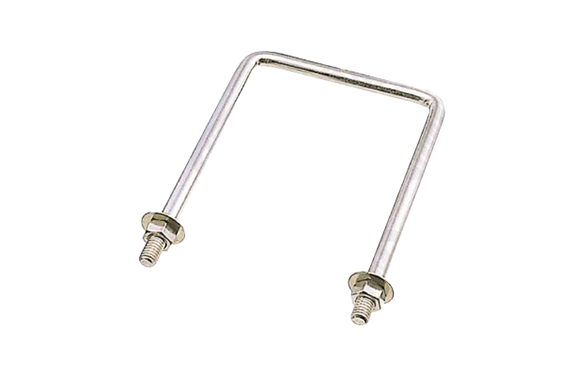

Mizumoto KB Series U-Bolt
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: KB Series
Features
- It is made of stainless steel, rust-resistant, and durable.
- By dropping it into a steel plate with two holes, it can be used as a handle for lifting.
Specifications
Metric Thread
| Model | D | L | W | P | T | Thread Size | Weight (g) |
| KB-12M100 | 11 | 100 | 89 | 100 | 15 | M-12 | 228 |
Inch Thread
| Model | D | L | W | P | T | Thread Size | Weight (g) |
| KB-10W150 | 9 | 150 | 92.5 | 101.5 | 20.5 | W-3/8 | 204 |
| KB-10W200 | 9 | 200 | 92.5 | 101.5 | 20.5 | W-3/8 | 254 |

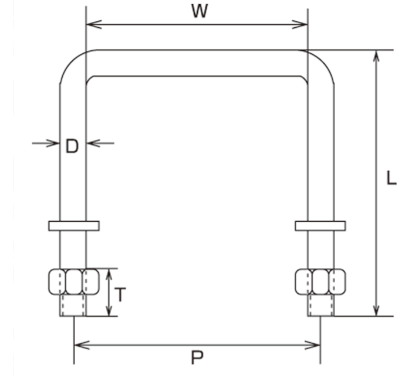

Dimensions (mm)
