Mizumoto Machine Mfg. Co.

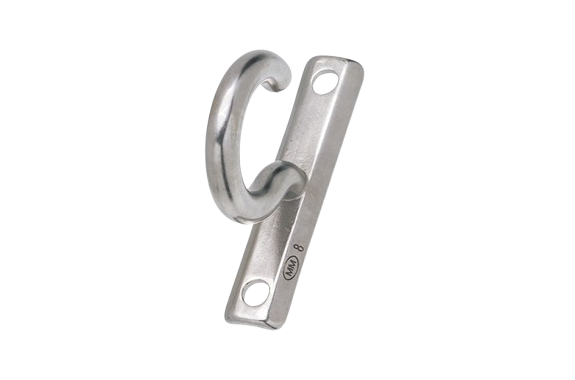

Mizumoto PHL Series Plate Hook Vertical
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: PHL Series
Features
- The back is shaped like a V, so it fits curved surfaces.
- It is a counterfeit on the back.
- It assumes the use of blind nuts.
- It is installed on walls, floors, pillars, etc., and used as a hanger.
Specifications
| Model | D | L1 | L2 | W | H | S1 | S2 | d1 | d2 | T | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PHL-4 | 4 | 40 | 30 | 10 | 26 | 7 | 11.5 | 4.2 | 8.4 | 4.2 | 11 | 10 | 0.10 |
| PHL-5 | 5 | 50 | 35 | 12 | 32 | 8 | 15 | 5.2 | 9 | 5 | 21 | 15 | 0.15 |
| PHL-6 | 6 | 60 | 45 | 14 | 37 | 10 | 17 | 5.2 | 9 | 5 | 31 | 20 | 0.20 |
| PHL-8 | 8 | 70 | 55 | 16 | 50 | 15 | 23.5 | 6.2 | 11 | 5 | 56 | 30 | 0.29 |
*The back is a V shape that fits the curved surface.

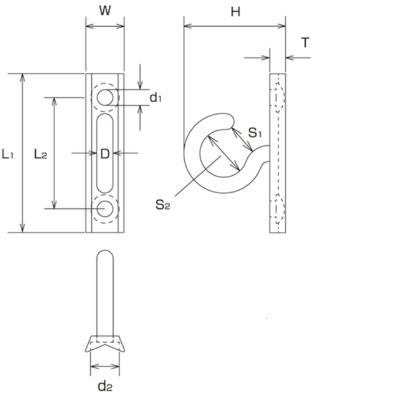

Dimensions (mm)
