Mizumoto Machine Mfg. Co.

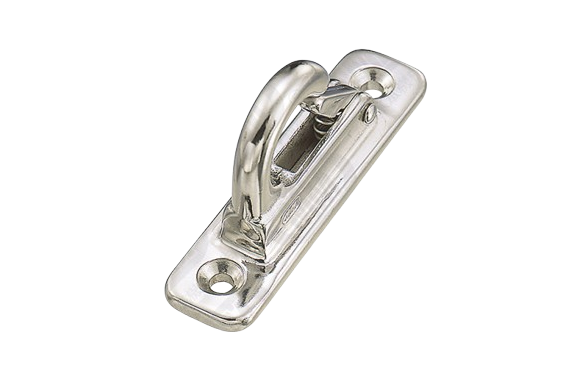

Mizumoto PDH Series Wall Hook PD Type
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: PDH Series
Features
- It is for flat surfaces.
- It is installed on walls, floors, pillars, etc., and is used as terminal hardware for chains, wires, and ropes.
Specifications
| Product Number | L1 | L2 | W | H | S | d | T | t | Weight (g) | Reference Load (kgf) | Reference Load (kN) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PDH-1 | 70 | 54 | 17.5 | 34 | 9 | 4.2 | 4.5 | 7 | 71 | 15 | 0.15 |
| PDH-2 | 70 | 54 | 17.5 | 34 | 9 | 4.2 | 4.5 | 7 | 64 | 15 | 0.15 |

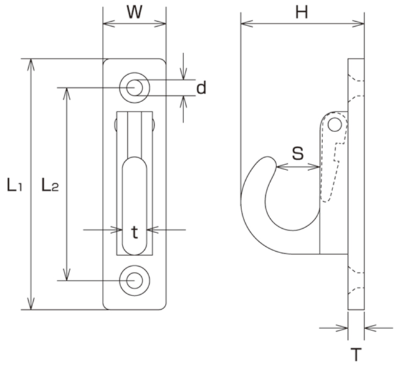

Dimensions (mm)
