Mizumoto Machine Mfg. Co.

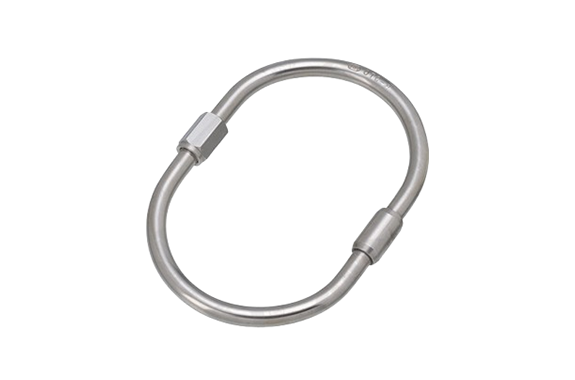

Mizumoto OTC Series Turn Catch
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: OTC Series
Features
- By rotating the connecting part by 90°, it is easy to set thick items with a wide frontage.
- As a connecting bracket such as chain, wire, rope, etc., and as a joint of terminal fittings.
- Do not force it to open more than 90° (it does not rotate 360°).
Specifications
| Part No. | D | L | B1 | B2 | E | Weight (g) | Reference Working Load (kgf) | (kN) |
| OTC-5 | 5 | 75 | 48 | 45 | 5.4 | 40 | 40 | 0.39 |
| OTC-6 | 6 | 85 | 54 | 51 | 6.5 | 64 | 60 | 0.59 |
| OTC-8 | 8 | 110 | 72 | 68 | 8.6 | 147 | 130 | 1.27 |
*Do not force it to open more than 90 degrees. (It does not rotate 360 degrees.) ）

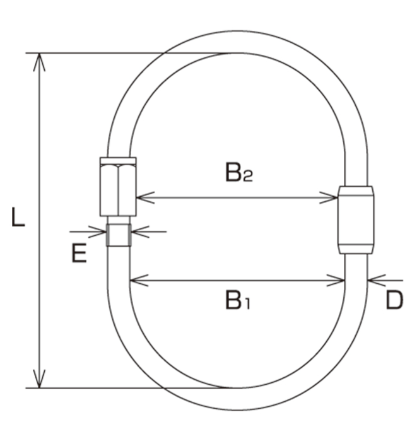

Dimensions (mm)
