Mizumoto Machine Mfg. Co.

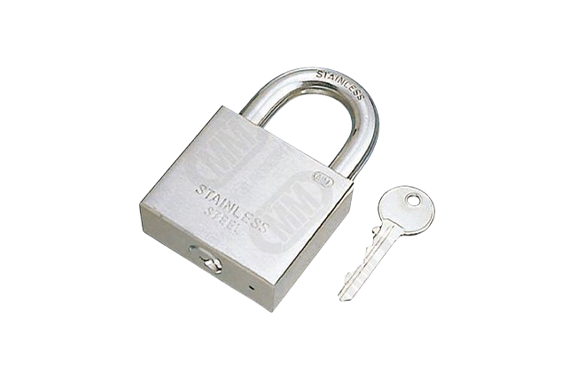

Mizumoto SDK Series Super Differential Key
Manufacturer: Mizumoto Machine Mfg. Co., Ltd.
Model: SDK Series
Features
- The SDK-40, 50, and 65 cannot be removed from the padlock when unlocked.
- The SDK-30 is spring-loaded. SDK-40, 50, and 65 are unspringed.
- For large doors, warehouses, and garage keys.
- For the key to motorcycles, bicycles, etc.
- To prevent theft of ship equipment, accessories, etc. Comes with 3 keys.
Specifications
| Part No. | A | B | C | E | F | G | Weight (g) |
| SDK-30 | 52.5 | 28.5 | 32 | 5.5 | 16 | 12.5 | 89 |
| SDK-40 | 67.5 | 38.5 | 40 | 7 | 19 | 16 | 198 |
| SDK-50 | 85.5 | 47 | 50.5 | 9.3 | 20 | 19 | 378 |
| SDK-65 | 103.5 | 56 | 64.5 | 11.8 | 31 | 25 | 756 |
*If you use the same key, please specify it as the same key.
*If the key is lost, the manufacturer is not responsible.
*SDL-40, 50, and 65 cannot be removed from the main unit when unlocking.
*SDK-30 is spring-loaded. SDK-40, 50, 65 without spring.

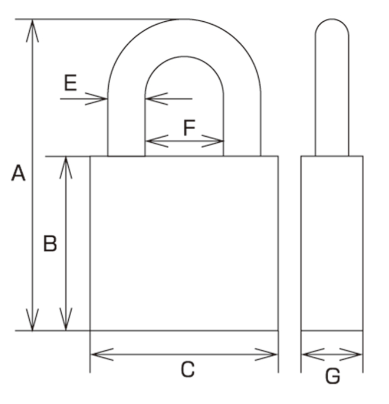

Dimensions (mm)
