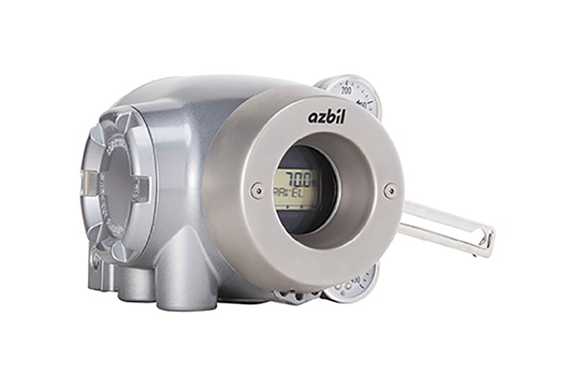

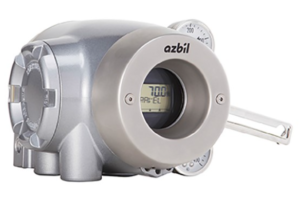

Manufacture: Azbil Corporation
Model: AVP70

The Smart Valve Positioner 700 Series consists of smart electro-pneumatic positioners equipped with a pressure sensor to enhance the diagnosis of control valves. This contributes to safer and more stable plant operation.

• Compatible with control valves from vendors around the world, no matter which valve you install
• Built-in pressure sensor enhances control valve diagnostics
• Pilot relay saves energy and improves controllability
• Local user interface (LUI) for explosive environments

Positioner type	Smart Valve Positioner 700 Series
Model No.	AVP701/702/703
Input signal	4 to 20mADC, FOUNDATION™︎ Fieldbus
Stroke range	14.3 to 100 mm Stroke (Feedback Lever Angle ±4° to ±20°)
Air supply pressure	140 to 700kPa {1.4 to 7.0kgf/cm²}
Ambient temperature	-40 to +80°C
Features	Single action/Double action Auto set-up Valve signature and step Response Test Valve travel transmitter function Communication : HART®7, FOUNDATION™︎ Fieldbus ITK6.1
