Manufacture: Azbil Corporation

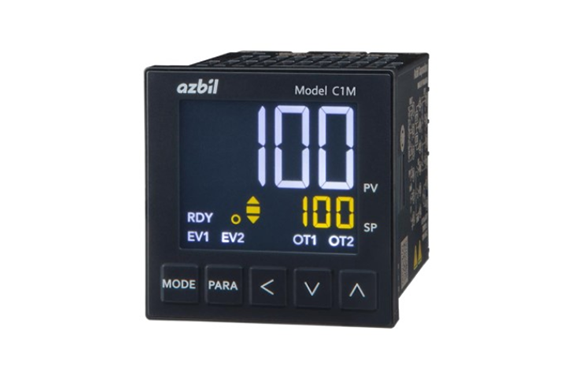

Model: C1M

User-friendly and easy-to-use controller solves process control problems

• Accuracy: ± 0.2 % FS. Sampling cycle: 50/100/300/500 ms (specifiable)
• Data at a glance liquid-crystal display
• All-in-one improved smart loader package
• Quick connection PLC link function

Summary

Model C1M is a controller with a PID control algorithm. Large-screen LCD shows control status at a glance.
New features have been added to help with PID adjustment and engineering.
The Smart Loader Package makes setting operation and monitoring easy.
A wide variety of input and output devices are available for use in combination.

Feature

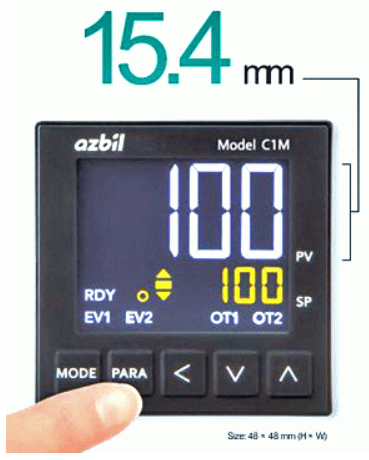

Data at a glance

Liquid-crystal display

The large 15.4-mm display (about 1.4 times larger than the previous model) shows the process value (PV) in bright white.
This improves visibility in the field.
A variety of other information can be displayed, allowing you to see the process control status at a glance.

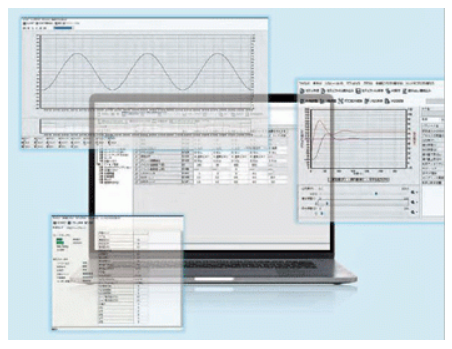

All-in-one

Improved smart loader package

Useful in a variety of situations: setup, trial run adjustment, operation check, etc.
A high-performance PID simulator, which brings together various Azbil technologies into one package, helps you to obtain the desired control responses.

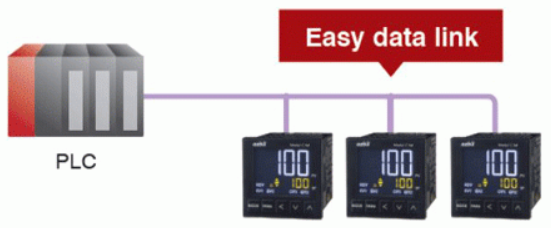

Quick connection

PLC link function

Data is transmitted by RS-485 serial communication without the need for a communication program, saving you time and engineering work.
