Azbil C3A/C3B/C2A/C2B Single Loop Controller

Manufacture: Azbil Corporation
Model: C3A, C3B, C2A , C2B

From standard to high-spec models, it meets a variety of needs.

±0.1% RD input accuracy, 25 ms sampling cycle (high-spec models)
PID simulator
Pullout structure for easy replacement
Easy connection with PLC link function

Summary

The user-friendly design makes it easy for anyone to use, including designers, manufacturing site staff, and maintenance staff. Of course, it also features outstanding accuracy and quality, with a sampling cycle of 25 ms and input accuracy of ±0.1 % reading.

From standard to high-spec models, it meets a variety of needs.

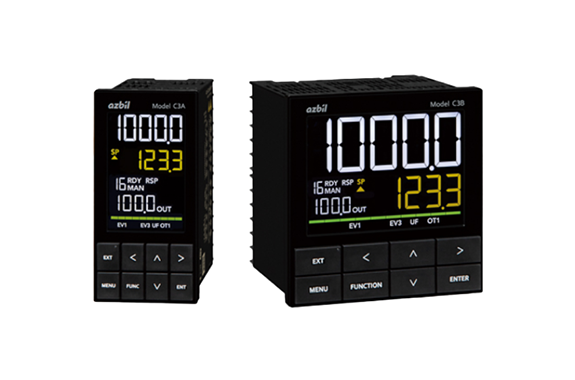

The lineup includes high-performance and high-accuracy controllers, models C3A/C3B, and easy-to-use standard controllers, models C2A/C2B.

	high-spec model		Standard Model

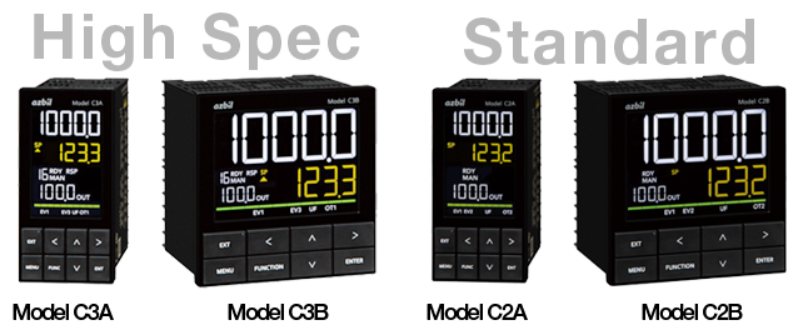

	Model C3A	Model C3B	Model C2A	Model C2B
Size (W × H)	48mm×96mm	96mm×96mm	48mm×96mm	96mm×96mm
Input accuracy	±0.1％RD		±0.2％FS
Sampling cycle	25ms		50ms
CT/Micro-CT/VT	CT/Micro-CT/VT		CT
AUX	AUX current/voltage		AUX current
Extended memory	✓		–
Screwless terminal	✓		–

We also offer a high-performance compact controller, model C1A ,which has a 48 mm × 48 mm front panel.

A single controller equipped with a variety of functions that improve controllability.

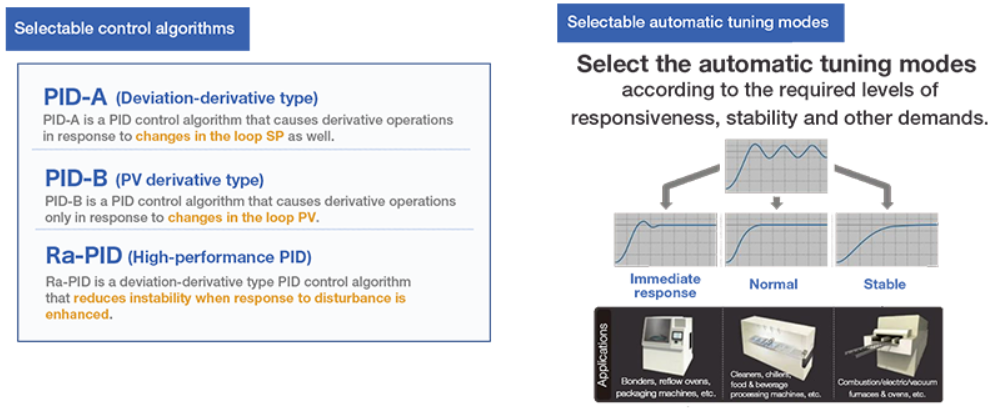

Selectable control algorithms (PID-A、PID-B、RaPID), Three automatic tuning modes, Linear approximation, Zone PID

Superior control with the PID simulator

Enhanced smart loader package

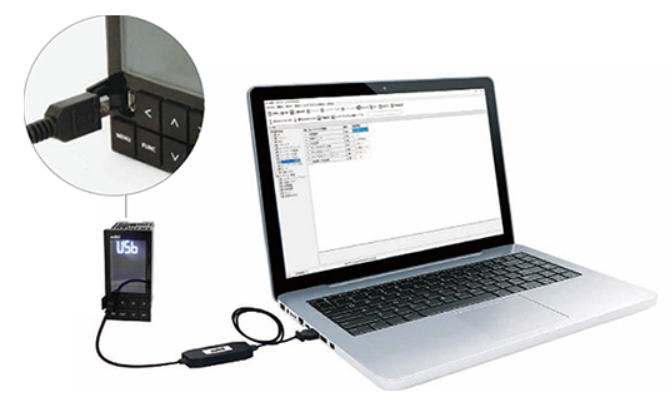

The model SLP-C1F_ _ _ smart loader package, which allows you to easily configure various settings, such as those for the PID simulator, is available free of charge. By connecting a PC to the controller using a USB loader cable (separately sold, model SLP-ULCJA0), you can read and write parameters from the PC using the loader.

PID simulator

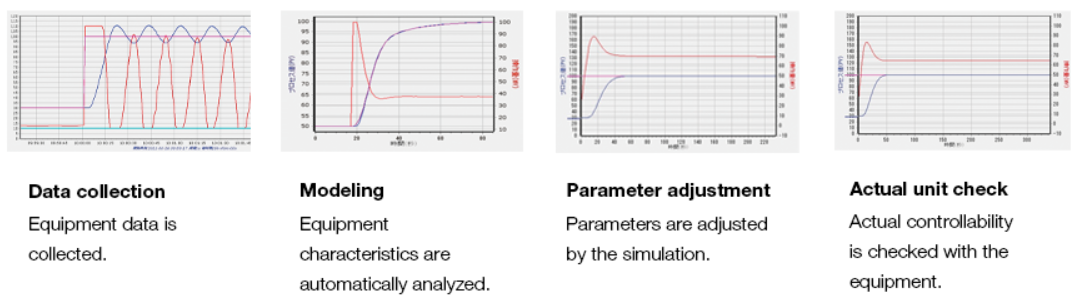

The PID simulator assists in reducing overshoot and hunting. It helps you to reduce the time needed for trial run adjustment and to improve takt time and the quality of equipment.

Easy connection with PLC link function

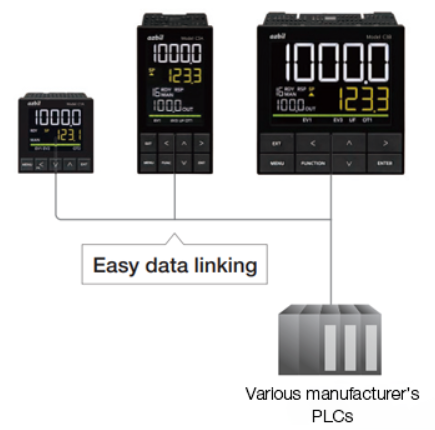

Data is transmitted by RS-485 serial communication without the need for a communication program, saving you time and engineering work.

Supported protocol	Connectable model examples
Mitsubishi/QnA-compatible 3C frame model 4	MELSEC iQ-R, MELSEC Q
Omron FINS (host link)	CJ2, CP2
KEYENCE protocol mode 4	KV-7000/8000
Modbus^TM/RTU	KV-NANO from Keyence S7-1200 from Siemens AG

Large, easy-to-read LCD screen

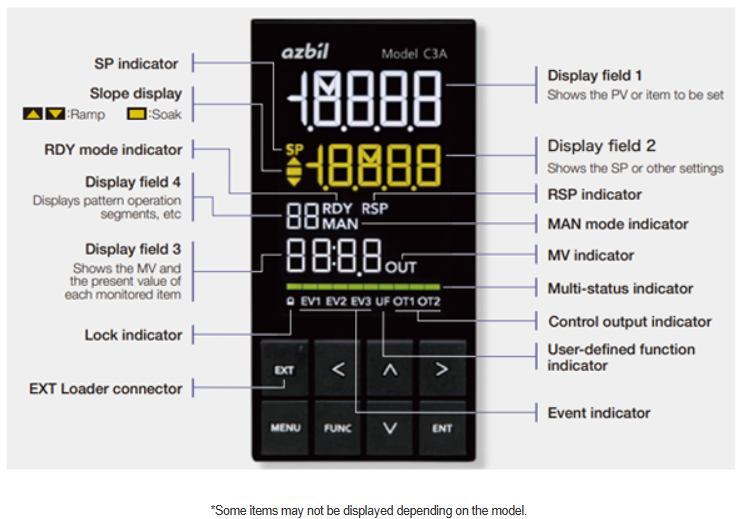

The large LCD screen can display a 4.5-digit number (−19999 to 19999). With the multi-status indicator, status can be seen at a glance, even from a distance.

Pullout structure for easy replacement

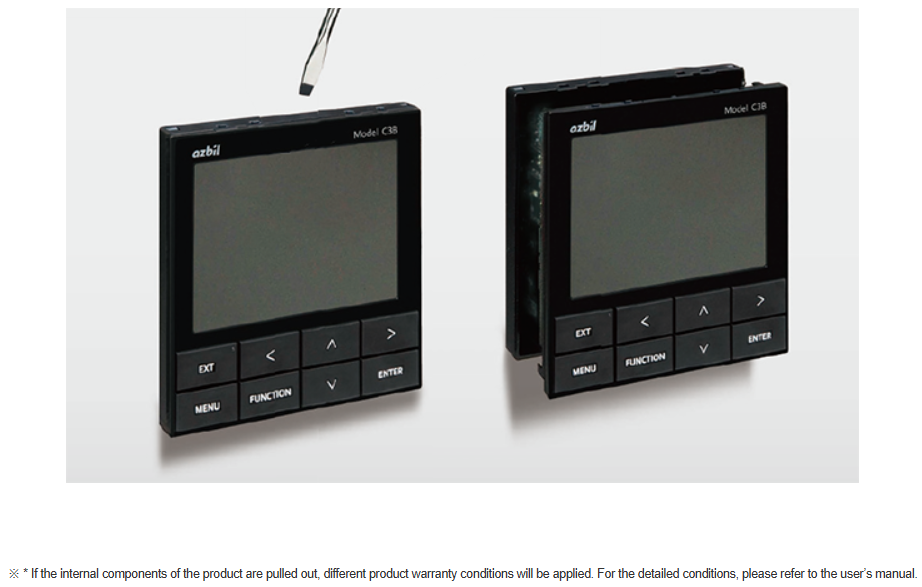

Quick recovery in the event of a sudden instrument failure. The pullout structure allows replacement of the inside of the instrument from the front without using special tools.
