Azbil Corporation

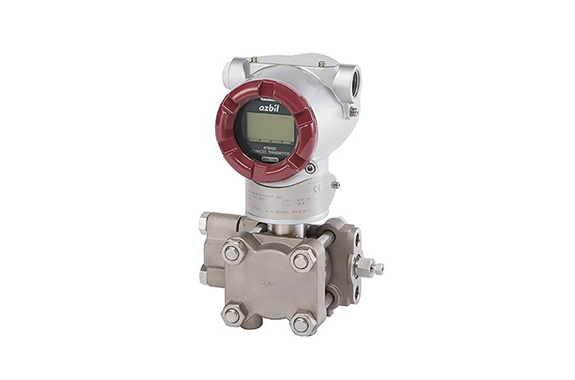

Azbil GTX30A/ GTX60A Absolute Pressure Transmitters
Manufacturer: Azbil Corporation
Model: GTX30A/ GTX60A
Feature
This is a microprocessor-based smart transmitter with excellent stability. It can measure the absolute pressure of gases, liquids, steam, etc.
Safe instrumentation: IEC 61508-compliant and SIL2-certified
Excellent usability: zero/span adjustment without opening the cover
Various functions: send alarm information by contact output (optional)
Summary
Users employ Advanced Transmitter Absolute Pressure Transmitters (Model GTX_ _A) to measure the absolute pressure of gases, liquids, and steam, and to monitor tank pressure. By utilizing their wide measurement range, users can cut costs and reduce the inventory of spare units.
| Model | GTX30A | GTX60A |
|---|---|---|
| Measurement span | 4～104 kPa | 35～3500 kPa |
| Setting range | 0～104 kPa abs | 0～3500 kPa abs |
| Reference accuracy(Varies by material and measurement span) | ±0.15% | ±0.15% |
| Fill fluid | Silicone oil (general purpose models), fluorine oil (oxygen and chlorine models) | |
| Waterproof and dust-proof construction | IEC IP66/IP67 | |
| Explosion-proof construction | TIIS flameproof (Exd IICT4) KOSHA flameproof FM explosion proof, intrinsic safe and Nonincendive ATEX/NEPSI/IECEx flameproof, intrinsic safe and Type n | |
| Wetted material | SUS316 (diaphragm SUS316L), Alloy C-276, Tantalum | |
| Power | 17.9～42V DC | |
| Output signal | 4 to 20 mA DC (SFN communication) 4 to 20 mA DC (HART® communication) | |
| Safety certification | Safety Integrity Level (SIL) 2 certification | |
