Product Made in Japan
Manufacturer: Bullman

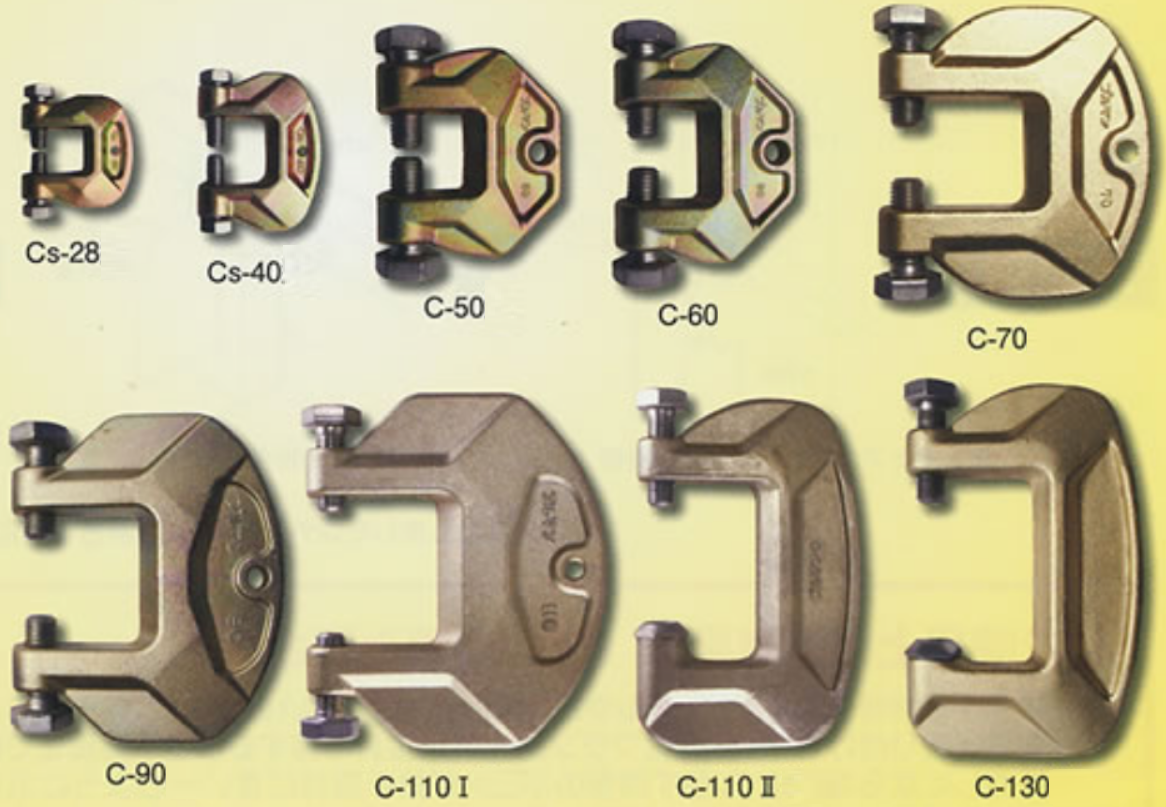

Model: Type C :  C-50, C-60, Cs 28, Cs-40, C-50, C-60, C-70, C-90, c-110I,C-110II, C-130, G, H 300 – 400

Bullman Clamp type C (C-50 · C-60)

Certified type I temporary industrial joints

They are mainly used to connect parts where two steel sheets overlap each other

Specification

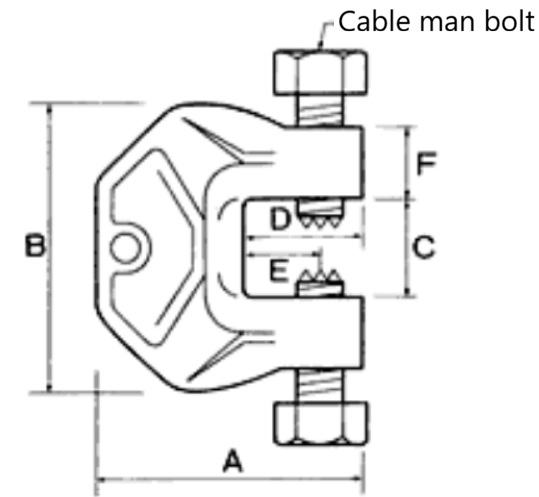

Bullman Clamp type C

In C type, besides the basic type, Bullman also has smaller, larger and special clamps C type. It is possible to choose according to the size and application of steel materials.

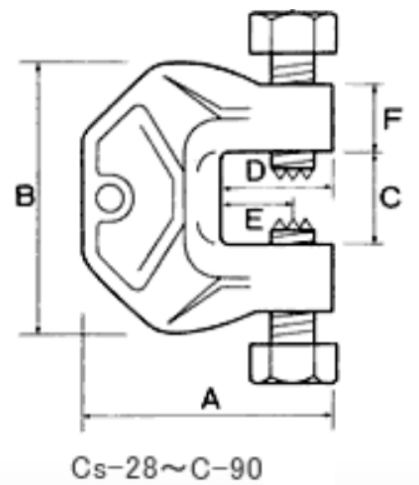

Specification

Model	Clamp range	A	B	C	D	E	F	thickness	Own weight	Bolt size	Ratchet	Use load
Cs-28	13-26	74	76	28	39	28	18	24	0.6kg	M12x35	19	9.8kN
Cs-40	15-38	77	100	40	42	31	21	24	0.7kg	M12x40	19	9.8kN
C-50	12-48	126	144	50	56	37	35	38	3.1kg	M24x65	41	78.4kN
C-60	21-60	127	156	62	57	37	35	40	3.3kg	M24x65	41	78.4kN
C-70	30-70	192	208	72	100	80	35	40	6.5kg	M24x65	41	78.4kN
C-90	52-88	190	230	90	90	70	35	40	7.0kg	M24x65	41	78.4kN
c-110 I	85-113	228	270	116	100	80	35	40	10.6kg	M24x65	41	78.4kN

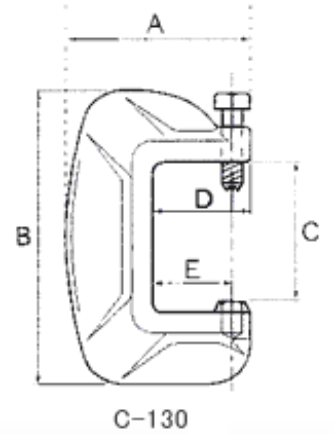

Specification

Model	Clamp range	A	B	C	D	E	thickness	Own weight	Bolt size	Ratchet	Working load
C-110Ⅱ	85-113	185	290	115	100	80	40	8.2kg	M24x80	41	78.4kN
C-130	110-135	185	290	136	100	80	40	7.9kg	M24x80	41	78.4kN

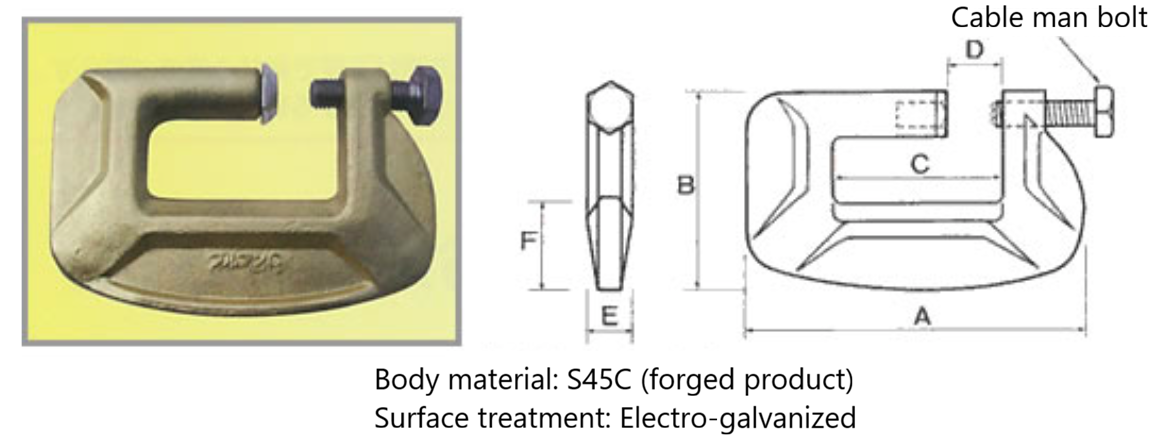

Bullman Clamp type G

Type G clamp is used to connect channel and angle struts.

Specification

Model	Clamp range	A	B	C	D	E	F	Own weight	Ratchet	Working load
G	L100x100 [Up to 380 x 100	290	185	150	50	40	85	8.8kg	41	68.6kN

Bullman Clamp type LA

Certified type II temporary industrial joints

Type LA clamp is used to join the supporting pile, web brace and angle brace.

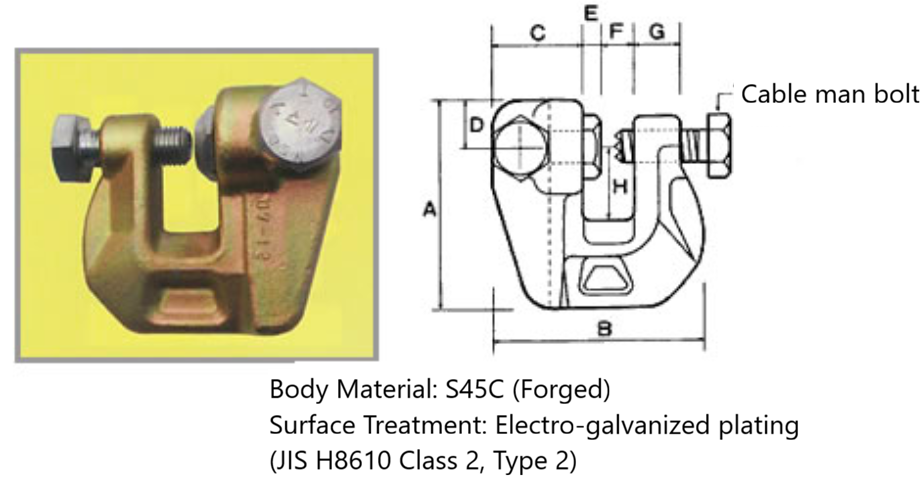

Bullman Clamp type NT

Certified type III temporary industrial joints

Type NT clamp used to attach supporting pile, furthermore it is used for horizontal joining of beam and channel strut.

Specification

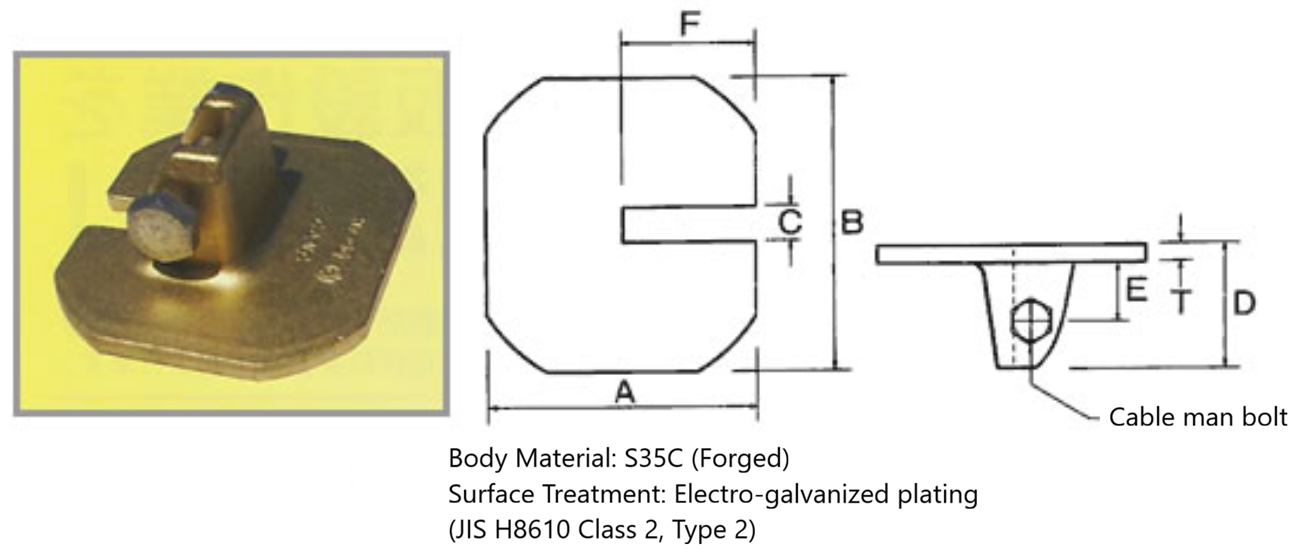

Bullman Clamp type SP

Mounting bracket for temporary protective fence.
