CCS Inc.

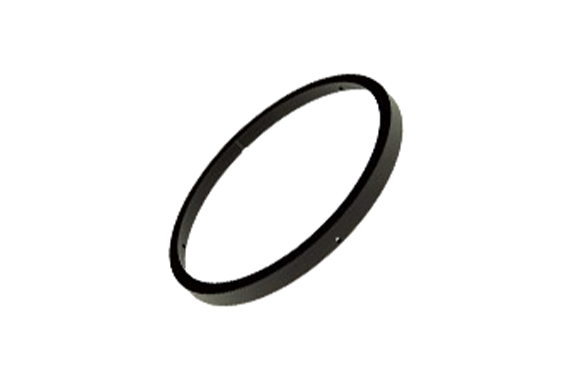

CCS AD-LDR-PF-150-LA Adapter [For The CSR Series]
Manufacturer: CCS Inc.
Model: AD-LDR-PF-150-LA
Features
- Use when installing a diffusion plate to the Light Unit.
- For the LDR-PF-150-LA-series High Power Strobe Lights (Low-Angle Ring type).
Specifications
| Dimensions | Outer diameter 157 mm, Inner diameter 142 mm, Height 12 mm |
|---|---|
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Weight | 63 g max. |
| Material | Aluminum alloy |
| Accessories | Set screws (M3 x 3 mm) x 4, Hexagonal wrench |
| Notes | Applicable products: LDR-PF-150-LA |
Dimensions (mm)
