CCS Inc.

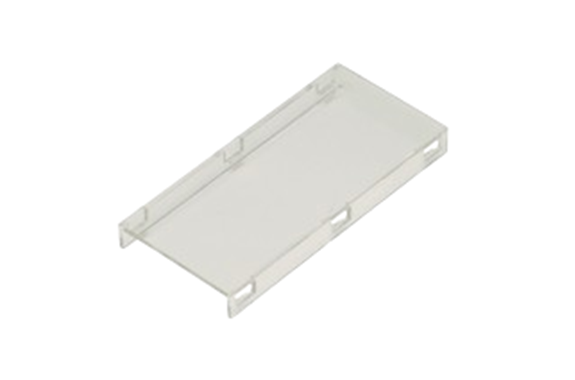

CCS CV-LDL2-392X16 Protective Plates
Manufacturer: CCS Inc.
Model: CV-LDL2-392X16
Features
- Protects emitting surface of the Light Units.
- Snap-in easy installation without using screws.
- For the LDL2-392X16 series.
- Note: It is not intended to protect against dust or water.
Specifications
| Dimensions | D 23.2 mm x H 8.4 mm x W (the same as the width of the Light Unit) |
|---|---|
| Heat resistant temperature | 80 ℃ |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Weight | 28 g |
| Accessories | Operation Guide |
| Caution | Heat may cause deformation or discoloring depending on the use environment. Periodically inspect the accessories to maintain the essential effect of them. |
| Notes | This snap-in Protective Plate is used with the 392×16 Series. |
Dimensions (mm)
