CCS Inc.

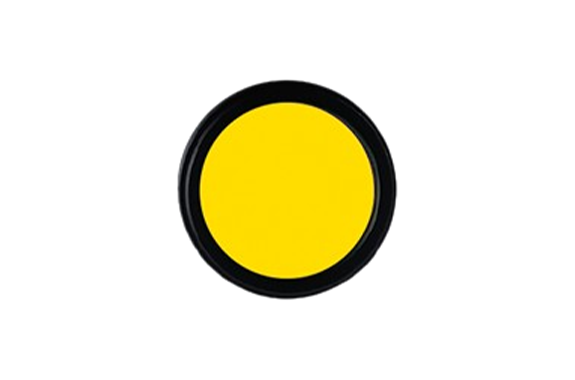

CCS F-SP700-62 Filters
Manufacturer: CCS Inc.
Model: F-SP700-62
Features
- Short-pass filter installed in front of a lens.
- Blocks ultraviolet and infrared, and transmits the light of 410 to 690 nm.
- Compatible with a lens filter thread diameter of M62 X P0.75 mm.
Specifications
| Dimensions | Outer diameter 64 mm, Inner diameter 57 mm, Height 7 mm |
|---|---|
| Screw hole diam. x Screw pitch | M62 x P0.75 |
| Useful range | 410 to 690 nm |
| Wavelength tolerance | +/-10 nm |
| Peak transmission | >90 % |
| Cut-on wavelength (50% transmission) | 400/700 nm (cut-on / cut-off) |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Lens material | Glass |
Dimensions (mm)
