CCS Inc.

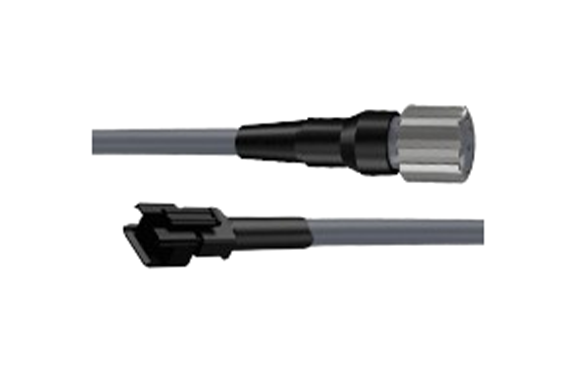

CCS FCB-5-M12 Straight Cables For M12 Connector
Manufacturer: CCS Inc.
Model: FCB-5-M12
Features
- Extension cable used to connect a Control Unit and a 24 V LED Light Unit that is equipped with an M12 connector.
- 5-m length cable with a waterproof connector on the Light Unit end.
Specifications
| Cable length | 5 m |
|---|---|
| Minimum bending radius (reference value) | 40mm |
| Connectors (Control Unit side) | SM connector (3-pin, plug) |
| Connectors (Light Unit side) | M12 connector (4-pin, socket), waterproof type. |
| Conformed standards | CE, UKCA、RoHS |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 95%RH (No condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Weight | 305 g max. |
| Caution | The connector on the Control Unit end is not waterproof. |
Dimensions (mm)
