CCS Inc.

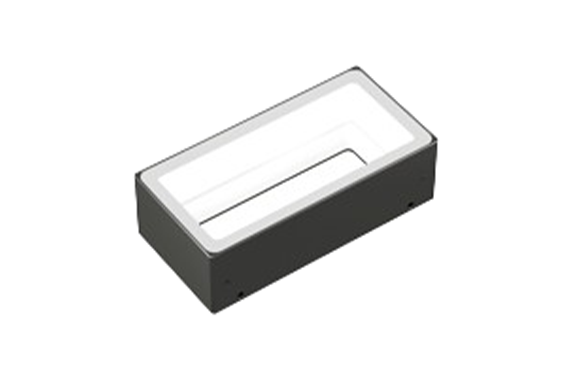

CCS FPQ3-100X50SW Low-Angle Square
Manufacturer: CCS Inc.
Model: FPQ3-100X50SW
Feature
- High-Output, Square, Low-Angle Lights.
- This Light Unit emits white light and measures 100 x 50 x 30 mm (width x depth x height).
Specifications
| LED color | White |
|---|---|
| Correlated color temperature | 6,000 K typ. |
| Dimensions | W 100 mm x D 50 mm x H 30 mm |
| Input voltage | 24VDC |
| Power consumption | 18 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS, EN62471 (Exempt) |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 135 g max. |
| Accessories | User Manual |

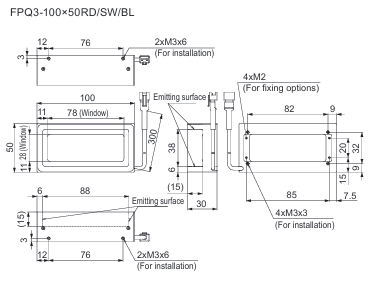

Dimensions (mm)
