CCS Inc.
CCS HPR2-150IR120 IR Lights [Infrared Lighting] (over 1000-nm type)
Manufacturer: CCS Inc.
Model: HPR2-150IR120
Features

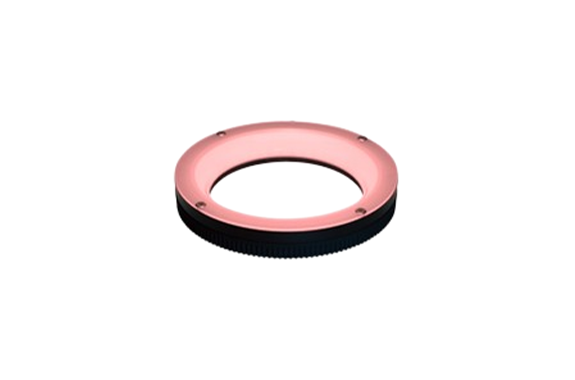

- Ring-type infrared illumination HPR2-150IR120 with an outer diameter of 166 mm, an inner diameter of 116 mm, a height of 26.4 mm, and a peak wavelength of 1200 nm.
Specifications
| LED color | Infrared |
|---|---|
| Peak wavelength | 1200 nm typ. |
| Dimensions | Outer diameter 166 mm, Inner diameter 116 mm, Height 26.4 mm |
| Input voltage | 24VDC |
| Power consumption | 16 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, resin |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 250 g max. |
| Accessories | User Manual |

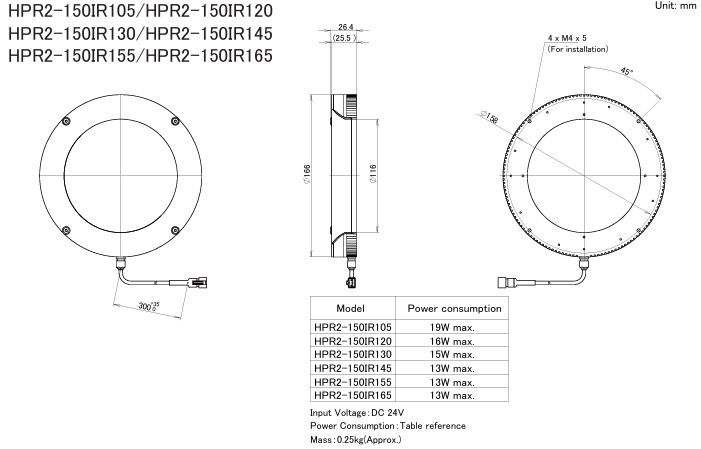

Dimensions (mm)
