CCS Inc.

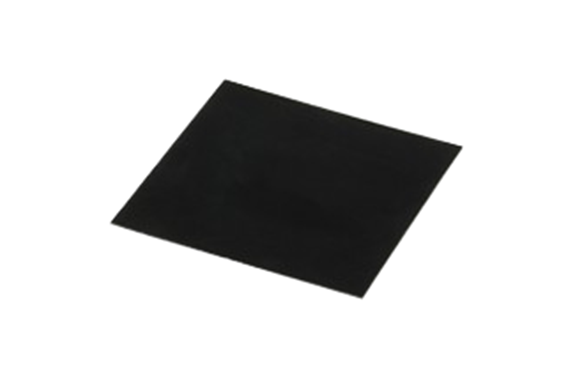

CCS LC-LFV3-70 Light Control Films [For Coaxial Lights]
Manufacturer: CCS Inc.
Model: LC-LFV3-70
Features
- For the LFV3-70-series Coaxial Lights and the LFV-PF-70-series High Power Strobe Lights.
- Square type Light Control Film.
- Improves parallerism of light and prevents wrapping around of light in the appearance inspection of workpieces when mounted on the Light Unit.
- This enables sharp imaging of profiles.
- One side is glossy and the other side is matte.
- When you would like to reduce the glare, please put the matte side on the surface.
Specifications
| Dimensions | W 73 mm x D 80 mm x H 0.5 mm |
|---|---|
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Weight | 5 g max. |
| Accessories | Operation Guide |
| Caution | The shape or color of the LC film may change due to heat in the application environment. If this occurs, you may not be able to get the intended results. Please perform periodic inspections. One side is glossy and the other side is matte. When you would like to reduce the glare, please put the matte side on the surface. * PDF and DXF drawings have been changed due to changes in LC film components. (July 2020) |
| Notes | Applicable products: LFV3-70(A), LFV-PF-70 |

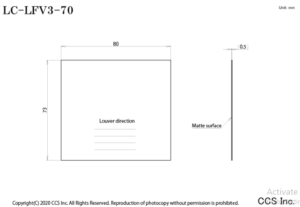

Dimensions (mm)
