CCS Inc.

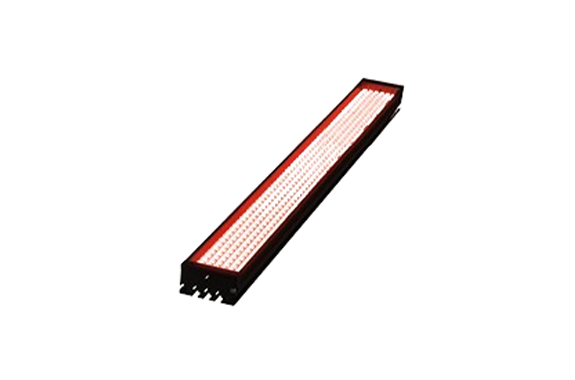

CCS LDL2-242X30RD2-WD Bar (Area)
Manufacturer: CCS Inc.
Model: LDL2-242X30RD2-WD
Features
- This Light Unit emits red light and measures 254 x 34 x 20 mm (width x depth x height).
- The light-emitting surface measures 242 x 30 mm.
- The directional characteristics are wide.
- High-power type.
Specifications
| LED color | Red |
|---|---|
| Peak wavelength | 634 nm typ. |
| Dimensions | W 254 mm x D 34 mm x H 20 mm |
| Input voltage | 24VDC |
| Power consumption | 38 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, resin |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 275 g |
| Accessories | User Manual |

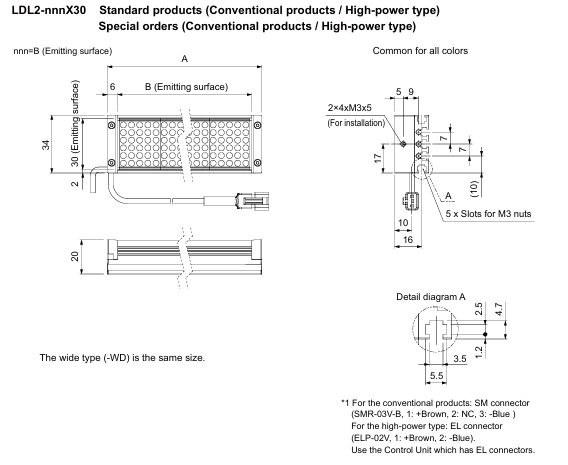

Dimensions (mm)
