CCS LFL-3212RD2-IU Intensity Control Units [Light Units with Intensity Control Unit]
Manufacturer: CCS Inc.
Model: LFL-3212RD2-IU
Features

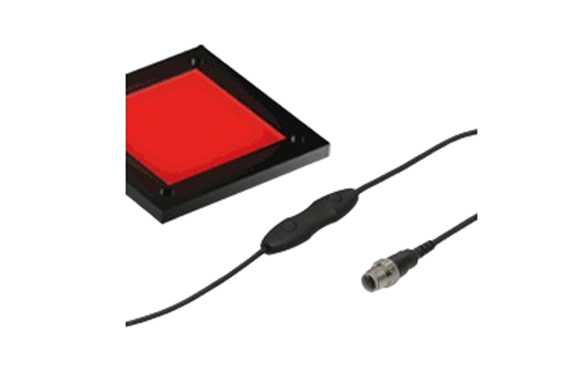

- This Light Unit with Intensity Control Unit emits red light and measures 66 x 81 x 7 mm (width x depth x height)
- The light-emitting surface measures 45 x 56 mm.
Specifications
| LED color | Red |
|---|---|
| Peak wavelength | 630 nm typ. |
| Dimensions | W 66 mm x D 81 mm x H 7 mm |
| Input voltage | 24VDC |
| Power consumption | 2.0 W max. |
| Polarity & signal | 1 : 24 VDC / 2 : NC / 3 : COMMON GND / 4 : ON/OFF input (+ 24 V) |
| Cable length | 670 mm (including the Intensity Control Unit) |
| Case material | Aluminum alloy, resin |
| Input connector | M12 (4 pins, plug) |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 120 g max. |
| Accessories | User Manual |
