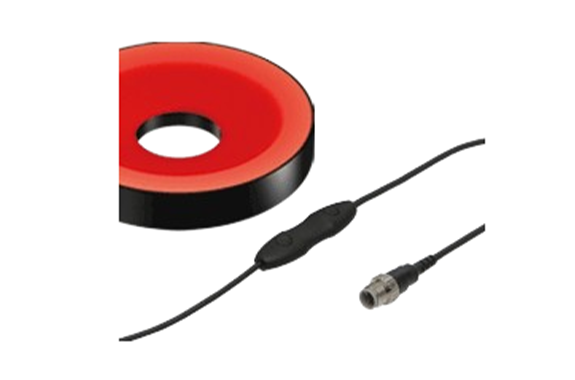

CCS LFR-100RD2-IU Intensity Control Units [Light Units with Intensity Control Unit]
Manufacturer: CCS Inc.
Model: LFR-100RD2-IU
Features
- This Light Unit with lntensity Control Unit emits red light and has an outer diameter of 102 mm, an inner diameter of 33 mm, a height of 12 mm, and a light-emitting surface diameter of 80 mm.
Specifications
| LED color | Red |
|---|---|
| Peak wavelength | 630 nm typ. |
| Dimensions | Outer diameter 102 mm, Inner diameter 33 mm, Height 12 mm |
| Input voltage | 24VDC |
| Power consumption | 4.1 W max. |
| Polarity & signal | 1 : 24 VDC / 2 : NC / 3 : COMMON GND / 4 : ON/OFF input (+ 24 V) |
| Cable length | 670 mm (including the Intensity Control Unit) |
| Case material | Aluminum alloy, resin |
| Input connector | M12 (4 pins, plug) |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 160 g max. |
| Accessories | User Manual |
Dimensions (mm)
