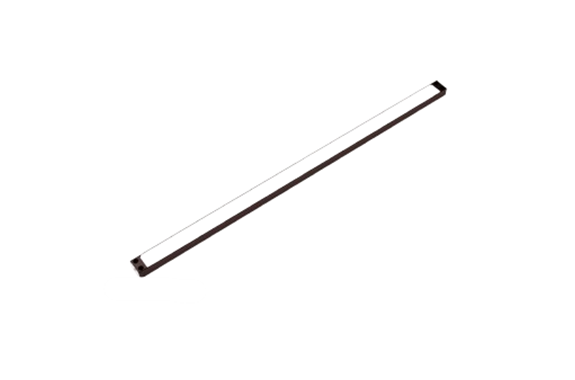

CCS LND2-600SW Line (Diffused Lighting)
Manufacturer: CCS Inc.
Model: LND2-600SW
Features
- This Light Unit emits white light and measures 634 x 27.2 x 18 mm (width x depth x height).
- The light-emitting surface measures 603 x 18.2 mm.
Specifications
| LED color | White |
|---|---|
| Correlated color temperature | 5,500 K typ. |
| Dimensions | W 634 mm x D 27.2 mm x H 18 mm |
| Input voltage | 24VDC |
| Power consumption | 35 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy, POM, PMMA (Diffuser) |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 360 g max. |
| Accessories | User Manual |

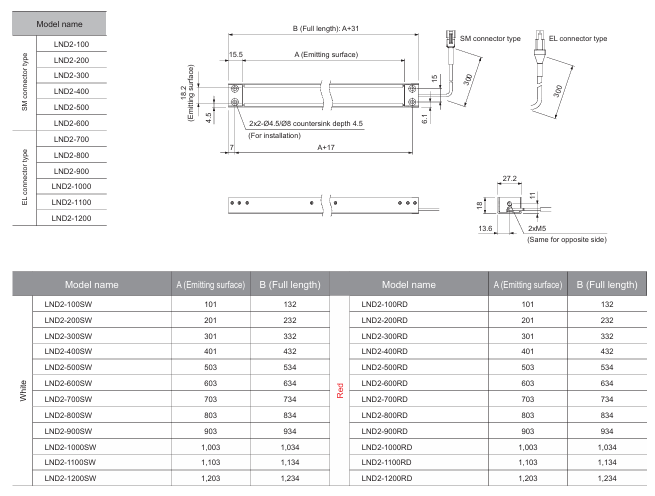

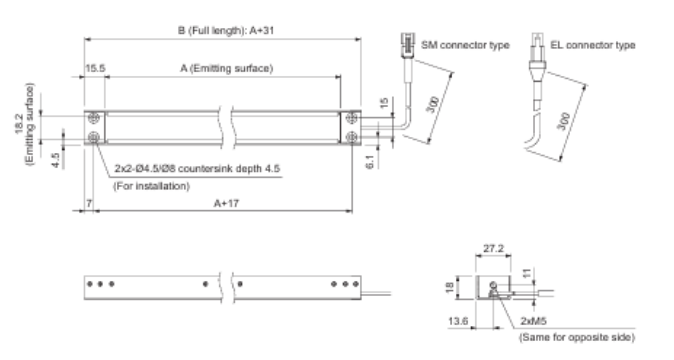

Dimensions (mm)
| Model name | |
SIN connector type | LND2-100 |
| LND2-200 | |
| LND2-300 | |
| LND2-400 | |
| LND2-500 | |
| LND2-600 | |
| LND2-700 | |
| LND2-800 | |
| LND2-900 | |
| LND2-1000 | |
| LND2-1100 | |
| LND2-1200 | |
EL connector type | LND2-100 |
| LND2-200 | |
| LND2-300 | |
| LND2-400 | |
| LND2-500 | |
| LND2-600 | |
| LND2-700 | |
| LND2-800 | |
| LND2-900 | |
| LND2-1000 | |
| LND2-1100 | |
| LND2-1200 |
| Model name | A (Emitting surface) | B (Full length) |
| LND2-100SW | 101 | 132 |
| LND2-200SW | 201 | 232 |
| LND2-300SW | 301 | 332 |
| LND2-400SW | 401 | 432 |
| LND2-500SW | 503 | 534 |
| LND2-600SW | 603 | 634 |
| LND2-700SW | 703 | 734 |
| LND2-800SW | 803 | 834 |
| LND2-900SW | 903 | 934 |
| LND2-1000SW | 1,003 | 1,034 |
| LND2-1100SW | 1,103 | 1,134 |
| LND2-1200SW | 1,203 | 1,234 |
| Model name | A (Emitting surface) | B (Full length) |
| LND2-100RD | 101 | 132 |
| LND2-200RD | 201 | 232 |
| LND2-300RD | 301 | 332 |
| LND2-400RD | 401 | 432 |
| LND2-500RD | 503 | 534 |
| LND2-600RD | 603 | 634 |
| LND2-700RD | 703 | 734 |
| LND2-800RD | 803 | 834 |
| LND2-900RD | 903 | 934 |
| LND2-1000RD | 1,003 | 1,034 |
| LND2-1100RD | 1,103 | 1,134 |
| LND2-1200RD | 1,203 | 1,234 |
