Manufacturer: CCS Inc.
Model: LNSD-1500BL-HU

Features

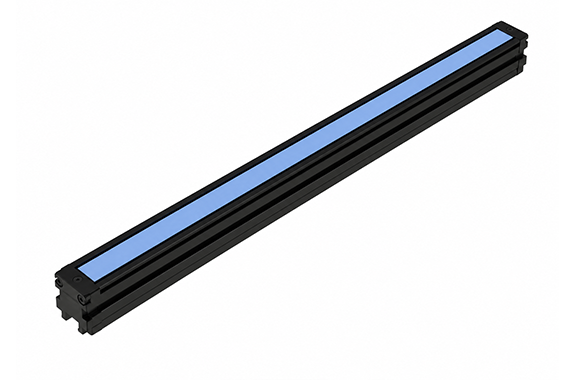

• This Light Unit emits blue light and measures W 1530 x D 30 x H 32.5 mm.
• The light-emitting surface measures 1500 x 15 mm.
• High uniformity type.

Note 1: There are two connectors only for the Light Unit whose length of the emitting surface is more than 1,200 mm.
Note 2: There are reinforcing metal fittings only for the Light Unit whose length of the emitting surface is more than 1,600 mm.

Specifications

LED color	Blue
Peak wavelength	470 nm typ.
Dimensions	W 1,530 x D 30 x H 32.5 mm
Input voltage	24VDC
Power consumption	151 W max.
Polarity & signal	1: (+), 2: (-)
Cable length	300 mm
Case material	Aluminum alloy, resin
Input connector	ELP-02V x 2
Conformed standards	CE, UKCA, RoHS, IEC 62471（Low risk）
Operating temperature and humidity	Temperature: 0 to 50°C, Humidity: 20 to 85%RH (with no condensation)
Storage temperature and humidity	Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
Cooling method	Natural air cooling
Weight	2,040 g max.
Accessories	User Manual

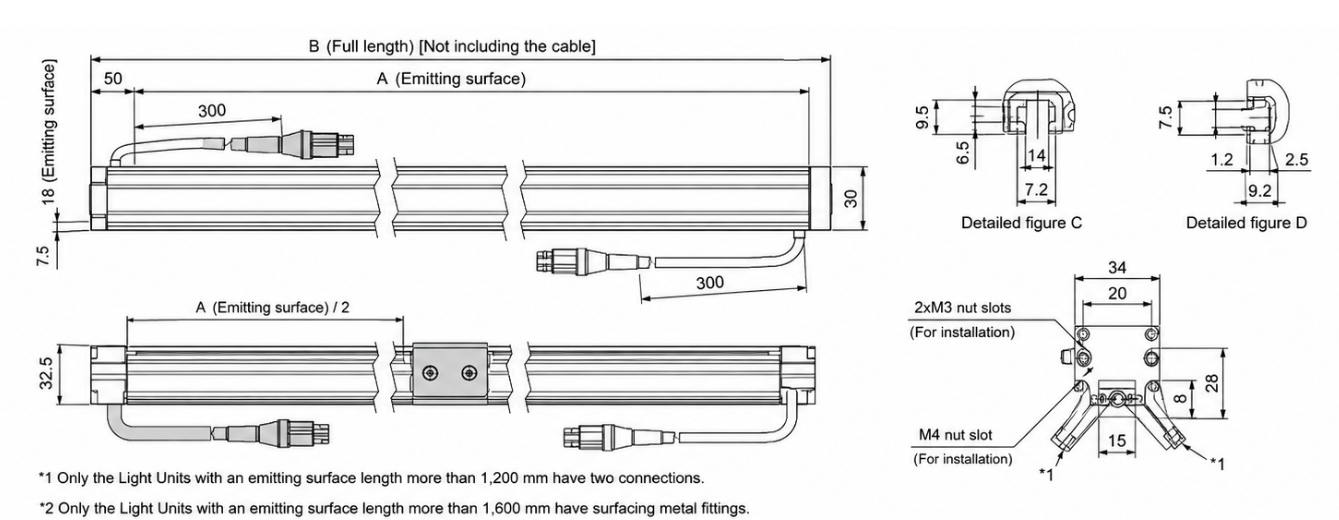

Dimensions (mm)

Type *1

Type *2
