CCS Inc.

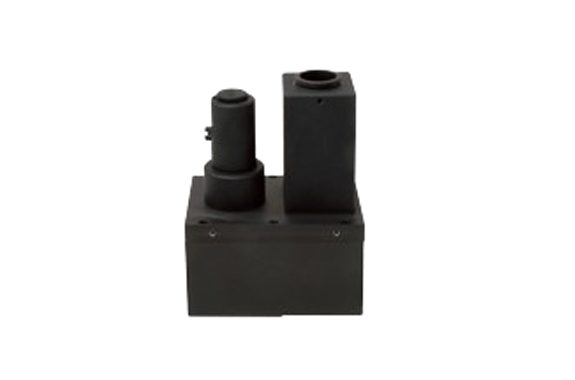

CCS MSU-30X20GR2 Coaxial
Manufacturer: CCS Inc.
Model: MSU-30X20GR2
Features
- This Light Unit emits green light and measures 66 x 95 x 126 mm (width x depth x height).
Specifications
| LED color | Green |
|---|---|
| Peak wavelength | 525 nm typ. |
| Dimensions | W 66 mm x D 95 mm x H 126 mm |
| Input voltage | 24VDC |
| Power consumption | 0.5 W max. |
| Polarity & signal | 1: (+), 2: NC, 3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum, Acrylic resin, Polyacetal, SPCC |
| Input connector | SMR-03V-B |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 540 g max. |
| Accessories | Handling Precautions |
Dimensions (mm)
