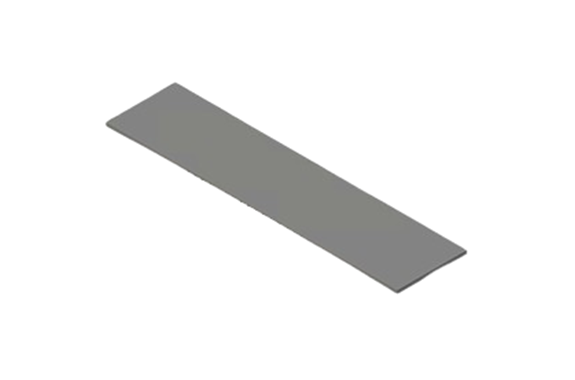

CCS PL-HLDL3-300-VE / PL-HLDL3-300-HO Polarizing Plates [For HLDL3 Series]

Manufacturer: CCS Inc.
Model: PL-HLDL3-300-VE / PL-HLDL3-300-HO

Features

  • Polarizing plate for HLDL3-300X28 bar lights.
  • Used with a polarizing filter to remove surface reflection from the workpiece.
  • Two types of polarizers are available:
  • Polarization direction is perpendicular with respect to the long side (PL-HLDL3-300-VE)
  • Polarization direction is parallel with respect to the long side (PL-HLDL3-300-HO)

Specifications

DimensionsW 304 mm x D 37 mm x H 1.8 mm
Heat resistant temperature80 ℃
Operating temperature and humidityTemperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
Storage temperature and humidityTemperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
Weight25 g max.
MaterialResin
Caution
  • * Remove the diffuser before installing the polarizing plate. If you want to use both a polarizer and diffuser, please contact your local sales representative for a custom order.
  • * Polarizing plate has a front and backside. Install the plate that has film side facing the inspected object.
  • * The attachment of the film to the resin plate may be affected by changes in the environment, but this does not impact the function or performance.
  • * Not available for infrared models.
  • * Heat may cause deformation or discoloring depending on the use environment. If this occurs, you may not be able to get the intended results. Please perform periodic inspections.
NotesApplicable products: HLDL3-300X28(SW/BL/RD)-DF-(N/M/W)
(Not available for infrared models)

Dimensions (mm)
