CCS Inc.

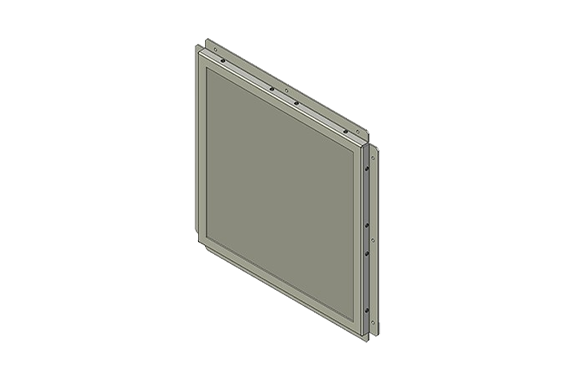

CCS PR-LFXV-150 Protective Plates
Manufacturer: CCS Inc.
Model: PR-LFXV-150
Features
- PR-LFXV-150 is a protection plate for the LFXV-150RD/SW/BL/IR860
(Flat Dome Light LFXV Series). - Protects the light-guiding diffusion plate of the Light Unit.
- Using this product does not protect against damage caused by dust, water, etc.
- It is not available to use this product for protection use from any damages caused by dust, water and etc.
Specifications
| Dimensions | D 186 mm x W 186 mm x H 8.2 mm |
|---|---|
| Heat resistant temperature | 80 ℃ |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Weight | 155ｇ |
| Accessories | M2 x 4 mm screws x 13 pcs. |
| Caution | Heat may cause deformation or discoloring depending on the use environment. Periodical inspection is recommended to maintain product performance. |
| Notes | This Protective Plate is used with the LFXV Series. |

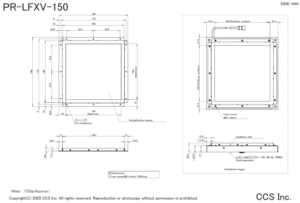

Dimensions (mm)
