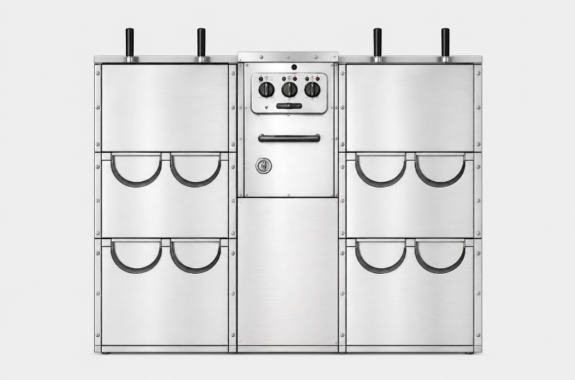

Chiyoda Seiki MLCP-140 Semi-automatic Switching Gas Supply Device Stand Set
Made in Japan
Manufacturer: Chiyoda Seiki
Model: MLCP-140
Feature
- The semi-automatic switching device is a gas collecting system with two container lines, A and B. Each line has two parallel regulators.
Gas starts flowing from the container line (A) with the higher set value, and when its gas level gets low, the system automatically switches to container line (B) without changing the flow rate. - To replace an empty container in line (A) with a filled one, rotate the switching lever 180° or move the adjustment handle, making the secondary pressure of line (B) higher, ensuring stable gas supply from line (B). When line (B) gets low, the system switches back to line (A).
Specifications
| Gas Name | O2, N2, Ar, Air,H2 He, CO2, C2H2, CH4 Ar+CO2 | |
Primary pressure (MPa) | Design | 16,2 |
| Regulator | 14,7 | |
Secondary pressure (MPa) | Design | 0,99 |
| Regulator | A: 0,7 B: 0,8 | |
Tertiary pressure (MPa) | Design | 0,6 |
| Regulator | 0,1~ 0,5 | |
| Flow rate | 50 m3/h | |
Main material | Regulator | C3771B |
| Diaphragm | CR | |
| Valve | C3771B | |
| Piping | C1220T | |
| Connecting pipe | C1220T | |
| Panel | C3604B | |
| Main maintenance | W22山14 | |
| Export connection | W29山16 | |
| Mass (panel set) | 42 | |
