Daico Thermotec

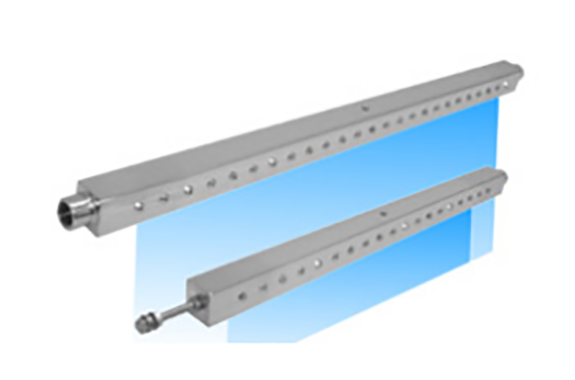

Daico DY&DYW Series Drying and Draining Air Blow Slit Type Air Nozzle for Compressors
Manufacturer: Daico Thermotec Co.,Ltd
Model: DY&DYW Series
Features
The DY&DYW series for compressors is a slit-type nozzle for air blowing exclusively for high-pressure air (compressors, etc.).

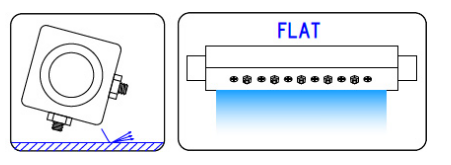

It ensures a stable linear air flow from low to high air speeds, allowing for even removal during air blowing processes such as drying and draining on the line.
The specifications of the jet slit are the same as those of the CY&CYW series nozzles for compressors , but the DY&DYW series for compressors has an air inlet attached to the end.
A standard bracket is also available for the DY&DYW series for compressors. (Made to order, sold separately)
Specifications
| Nozzle Model | Slit Length | Weight (reference) | Slit Width | Air inlet |
|---|---|---|---|---|
| DY-300 | 300mm | 690g | 0.15mm | PS(Rp)3/8″ (internal thread) |
| DY-350 | 350mm | 800g | ||
| DY-400 | 400mm | 890g | ||
| DY-500W | 500mm | 1110g | Double-sided blow-in type PS (Rp) 3/8″ (internal thread) | |
| DY-600W | 600mm | 1320g | ||
| DY-700W | 700mm | 1500g | ||
| DY-800W | 800mm | 1680g | ||
| DY-900W | 900mm | 1970g | ||
| DY-1000W | 1000mm | 2100g |
