Daido Machines

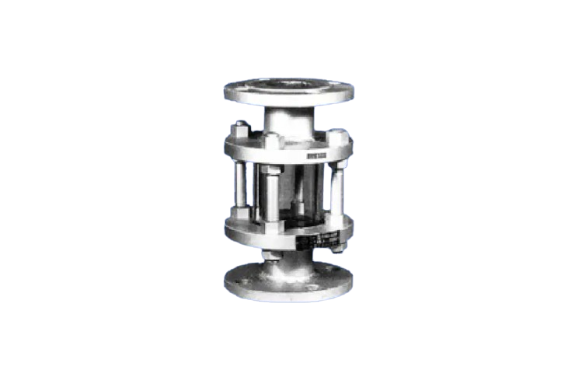

Daido Lantern S5 Type
Manufacturer: DAIDO MACHINES CO., LTD
Model: S5 Type
Feature
- The most significant features of lantern type S5 sight glasses is that fluid flow conditions can be observed from every angle.
Specifications

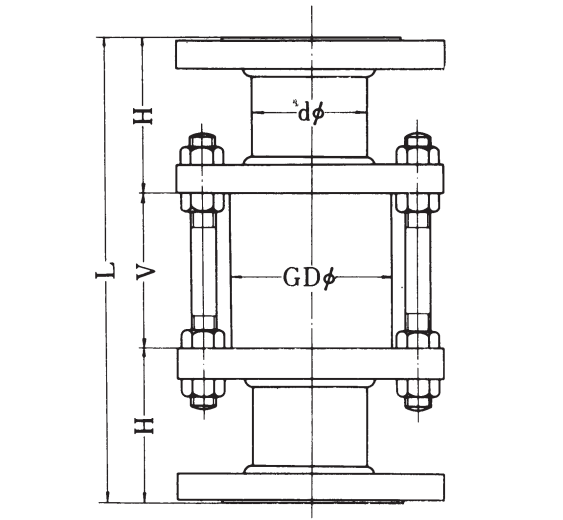

| NOMINAL DIA | TYPE | FACE TO FACE L | WINDOW TYPE: SN-OY, SN-OV (JIS10K, ASME150Lb) V | WINDOW TYPE: SN-OY, SN-OV (JIS10K, ASME150Lb) GD φ | H |
| 15A 1/2″ | S5-OY 15 | 220 | 80 | 35 | 70 |
| 20 3/4″ | S5-OY 20 | 220 | 80 | 40 | 70 |
| 25 1″ | S5-OY 25 | 220 | 80 | 45 | 70 |
| 40 1-1/2″ | S5-OY 40 | 220 | 80 | 60 | 70 |
| 50 2″ | S5-OY 50 | 240 | 80 | 70 | 80 |
| 65 2-1/2″ | S5-OY 65 | 240 | 80 | 85 | 80 |
| 80 3″ | S5-OY 80 | 240 | 80 | 100 | 80 |
| 100 4″ | S5-OY 100 | 260 | 80 | 120 | 90 |
| 125 5″ | S5-OY 125 | 280 | 80 | 150 | 100 |
| 150 6″ | S5-OY 150 | 280 | 80 | 180 | 100 |
| 200 8″ | S5-OY 200 | 280 | 80 | 240 | 100 |
| 250 10″ | S5-OY 250 | 300 | 80 | 290 | 110 |
