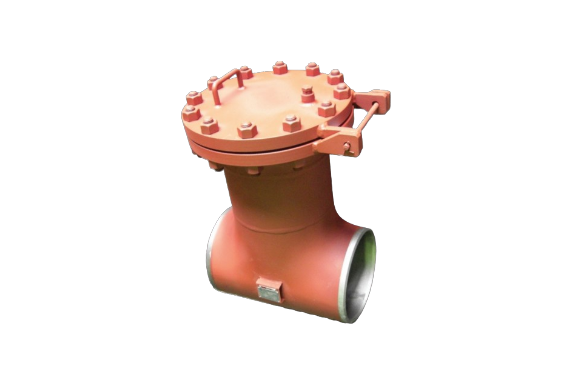

Daido T-Type Strainers T2 Type
Manufacturer: DAIDO MACHINES CO., LTD
Model: T2 type
Feature
- T2 type is for straight flow use.
- This strainer is suitable for relatively coarse filtration.

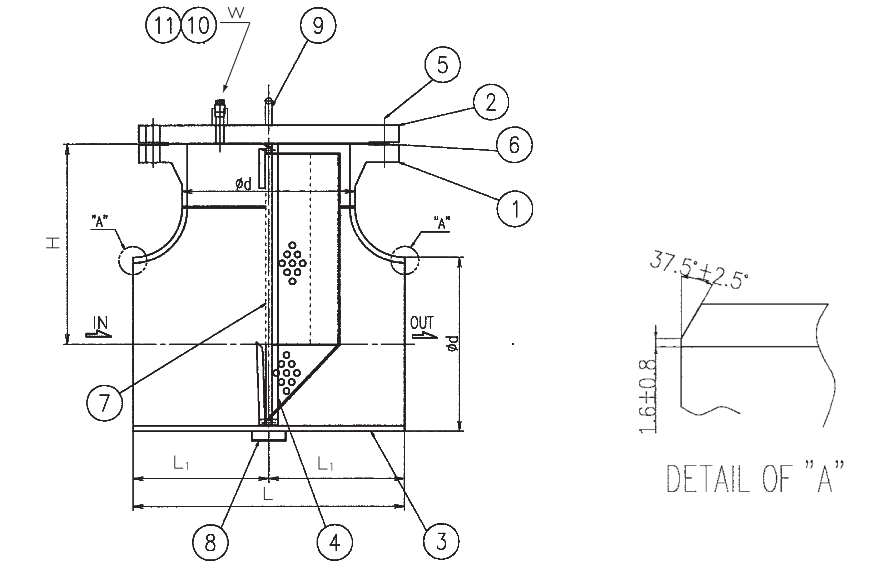

Drawing
| NO. | NAME |
| 1 | Body flange |
| 2 | Cover flange |
| 3 | Tee(Straight) |
| 4 | Guide |
| 5 | Bolt / Nut |
| 6 | Gasket |
| 7 | Element |
| 8 | Name Plate |
| 9 | Handle |
| 10 | Drain Boss |
| 11 | Drain plug |
Dimension (Unit : mm)
| Size φd | L | L1 | H : Reference 150Lb | H : Reference 300Lb | W | Weight (kg) 150Lb | Weight (kg) 300Lb | |
| 50A | 2″ | 127.0 | 63.5 | 127.0 | 133.3 | 3/8″ | 8 | 9 |
| 65 | 2-1/2″ | 152.4 | 76.2 | 146.0 | 152.4 | 3/8″ | 13 | 15 |
| 80 | 3″ | 171.4 | 85.7 | 155.5 | 165.1 | 1/2″ | 16 | 20 |
| 100 | 4″ | 209.6 | 104.8 | 181.0 | 190.5 | 1/2″ | 23 | 31 |
| 125 | 5″ | 247.6 | 123.8 | 212.7 | 222.2 | 1/2″ | 31 | 42 |
| 150 | 6″ | 285.8 | 142.9 | 231.8 | 241.3 | 1/2″ | 38 | 57 |
| 200 | 8″ | 355.6 | 177.8 | 279.4 | 288.9 | 1/2″ | 63 | 93 |
| 250 | 10″ | 431.8 | 215.9 | 317.5 | 333.4 | 3/4″ | 90 | 147 |
| 300 | 12″ | 508.0 | 254.0 | 368.3 | 384.2 | 3/4″ | 134 | 220 |
| 350 | 14″ | 558.8 | 279.4 | 406.4 | 422.3 | 1″ | 177 | 294 |
| 400 | 16″ | 609.6 | 304.8 | 431.0 | 450.8 | 1″ | 227 | 383 |
| 450 | 18″ | 685.8 | 342.9 | 482.6 | 501.6 | 1″ | 281 | 492 |
| 500 | 20″ | 762.0 | 381.0 | 525.2 | 542.9 | 1″ | 357 | 613 |
