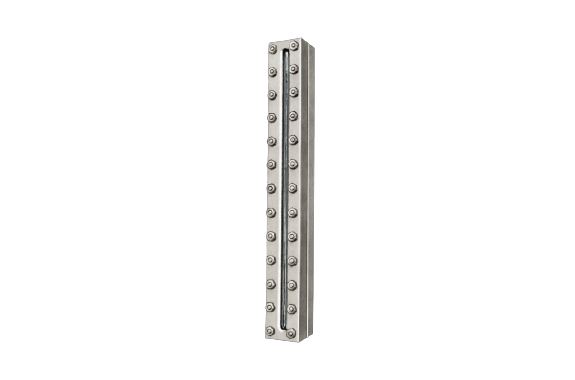

Daido G1 Type Weld On Gauge
Manufacturer: DAIDO MACHINES CO., LTD
Model: G1 Type
Feature
- The gauges are welded directly to the gauge body.
- R: Reflex type, T:Transparent type, Material: Carbon steel or stainless steel
- The tables below show visible lengths. Depending upon the application extra-long types and others are also manufactured.

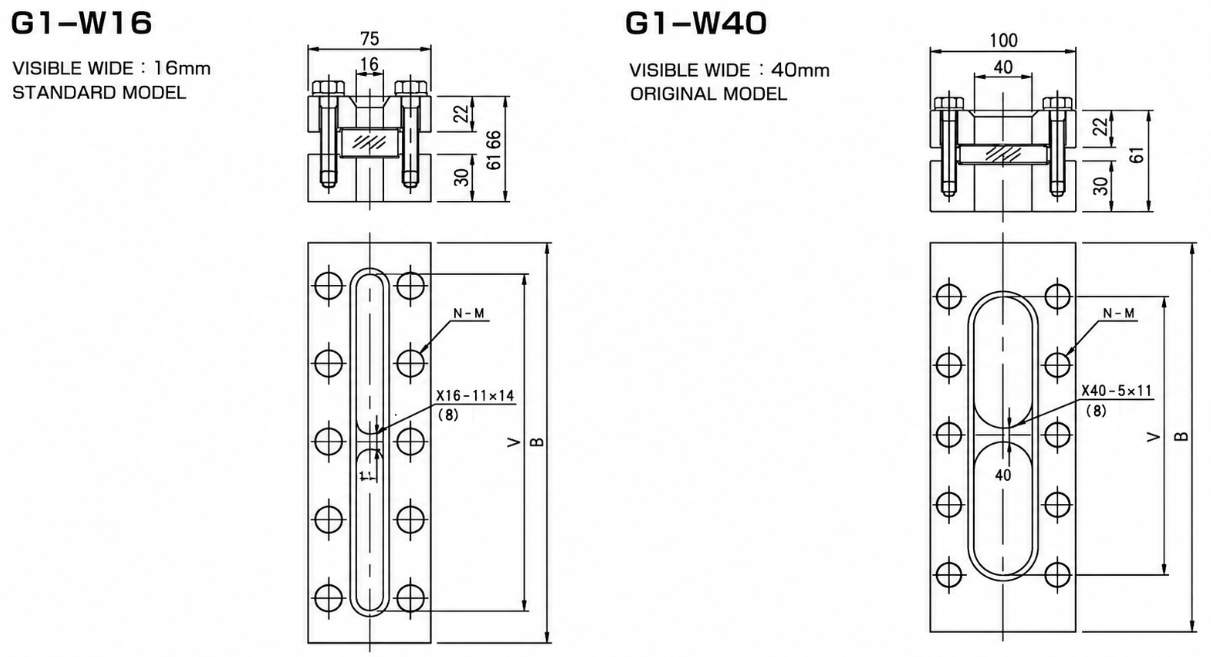

Drawing
Dimensions
| TYPE | VISIBLE LENGTH | VISIBLE WIDTH | BODY |
| G1-W16-R3 | 140 | 16 | 75X180 |
| G1-W16-T3 | 140 | 16 | 75X180 |
| G1-W16-R4 | 165 | 16 | 75X205 |
| G1-W16-T4 | 165 | 16 | 75X205 |
| G1-W16-R5 | 195 | 16 | 75X235 |
| G1-W16-T5 | 195 | 16 | 75X235 |
| G1-W16-R6 | 225 | 16 | 75X265 |
| G1-W16-Y6 | 225 | 16 | 75X265 |
| G1-W16-R7 | 255 | 16 | 75X295 |
| G1-W16-T7 | 255 | 16 | 75X295 |
| G1-W16-R8 | 295 | 16 | 75X335 |
| G1-W16-T8 | 295 | 16 | 75X335 |
| G1-W16-R9 | 315 | 16 | 75X335 |
| G1-W16-T9 | 315 | 16 | 75X335 |
| G1-W16-R10 | 375 | 16 | 75X415 |
| G1-W16-T10 | 375 | 16 | 75X415 |
