Manufacturer: Daiichi Electronics Co., Ltd.

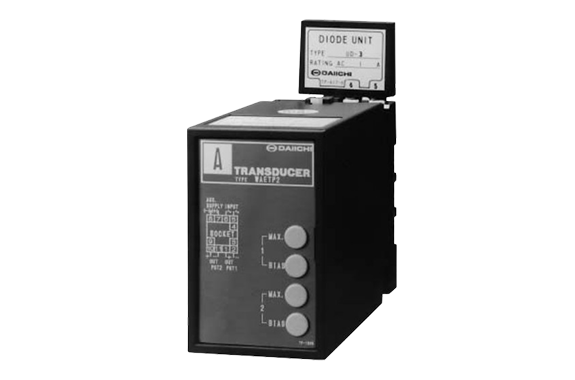

Model: WAETP2-3H51

Features

• Constant voltage and constant current output.
• Uses a hybrid IC with a true RMS conversion method, allowing it to handle distorted or SCR waveforms.
• Complete insulation between input, output, auxiliary power, and enclosure with a withstand voltage of AC 2,000 V (50/60 Hz) for 1 minute.
• Withstand voltage between output 1 and output 2: AC 1,000 V.
• Impulse withstand voltage: 5 kV, 1.2/50 μs, positive and negative polarity, guaranteed for three iterations (between electrical circuit and enclosure).

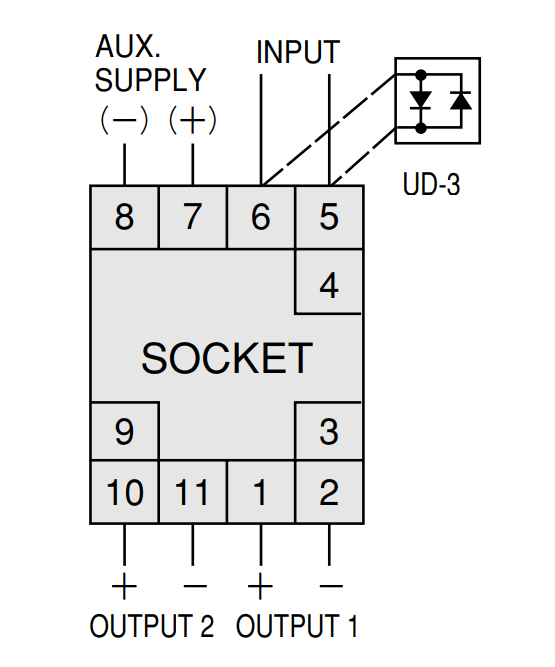

Wiring Diagram

Note: UD-3 is standard only for 5A and 1A input models.
